SI4435DY - -30V P-Channel MOSFET

General Description

The SOP-8 has been modified through a customized eadframe for enhanced thermalcharacteristics and multiple-die capabilitymaking it ideal in a variety of powerapplications.With these improvements.multiple devices can be used in an appication with dramatically reduced board space.

Key Features

  • VDS (V)=-30V ID=-8A RDS(ON).

📥 Download Datasheet

Datasheet Details

Part number SI4435DY
Manufacturer UMW
File Size 219.68 KB
Description -30V P-Channel MOSFET
Datasheet download datasheet SI4435DY Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI4435DY P-Channel MOSFET Kexin
SI4435DY 30V P-Channel MOSFET Fairchild Semiconductor
SI4435DY P-Channel MOSFET onsemi
SI4435DY Power MOSFET International Rectifier
Si4435DY 30V P-Channel MOSFET Vishay

Other Datasheets by UMW

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

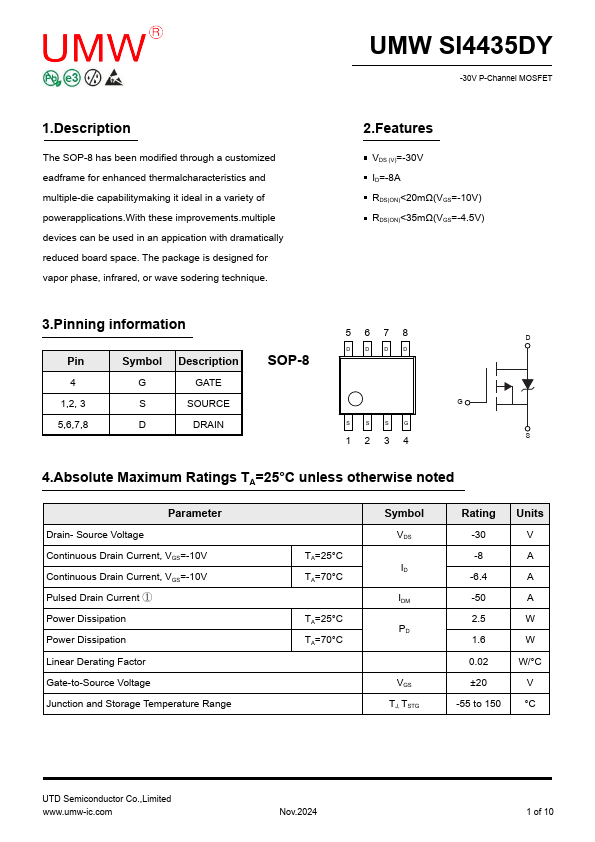

UMW SI4435DY -30V P-Channel MOSFET 1.Description The SOP-8 has been modified through a customized eadframe for enhanced thermalcharacteristics and multiple-die capabilitymaking it ideal in a variety of powerapplications.With these improvements.multiple devices can be used in an appication with dramatically reduced board space. The package is designed for vapor phase, infrared, or wave sodering technique. 2.Features VDS (V)=-30V ID=-8A RDS(ON)<20mΩ(VGS=-10V) RDS(ON)<35mΩ(VGS=-4.5V) 3.Pinning information 5678 D D D D D Pin Symbol Description SOP-8 4 G GATE 1,2, 3 S SOURCE G 5,6,7,8 D DRAIN S S S G 1234 S 4.
