2SJ598 - 60V P-Channel MOSFET

VBsemi

Key Features

Halogen-free According to IEC 61249-2-21 Definition.
Trench Power MOSFET.
100 % UIS Tested.
Compliant to RoHS Directive 2002/95/EC.

2SJ598 60v p-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	2SJ598
Manufacturer	VBsemi
File Size	274.75 KB
Description	60V P-Channel MOSFET
Datasheet	2SJ598 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SJ598	P-Channel MOSFET	INCHANGE
2SJ598	P-Channel MOSFET	NEC
2SJ598	MOS Field Effect Transistor	Kexin
2SJ598-Z	P-Channel MOSFET	Kexin
2SJ598-ZK	P-Channel Power MOSFET	Renesas

Other Datasheets by VBsemi

Part Number	Description
2SJ599-Z-E1-AZ	60V P-Channel MOSFET
2SJ505S	P-Channel MOSFET
2SJ518	P-Channel 60V MOSFET
2SJ529S	P-Channel 60V MOSFET
2SJ530S	60V P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

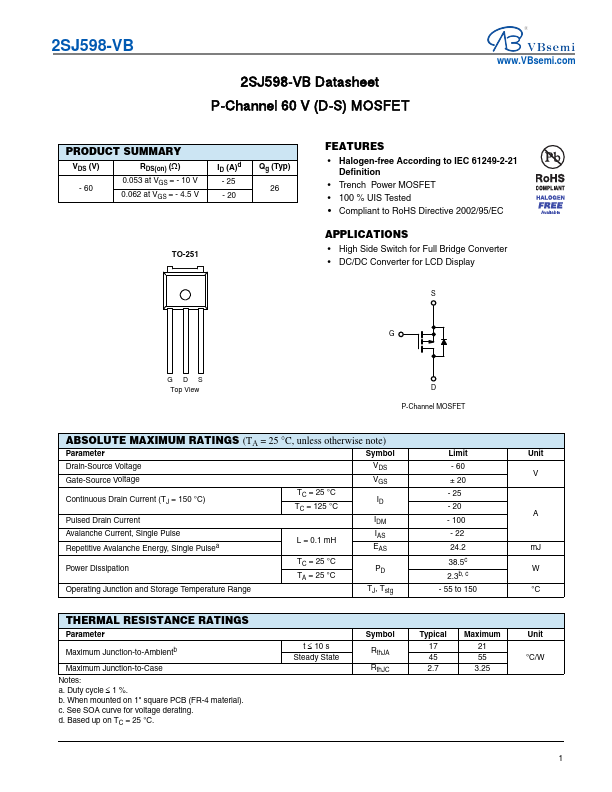

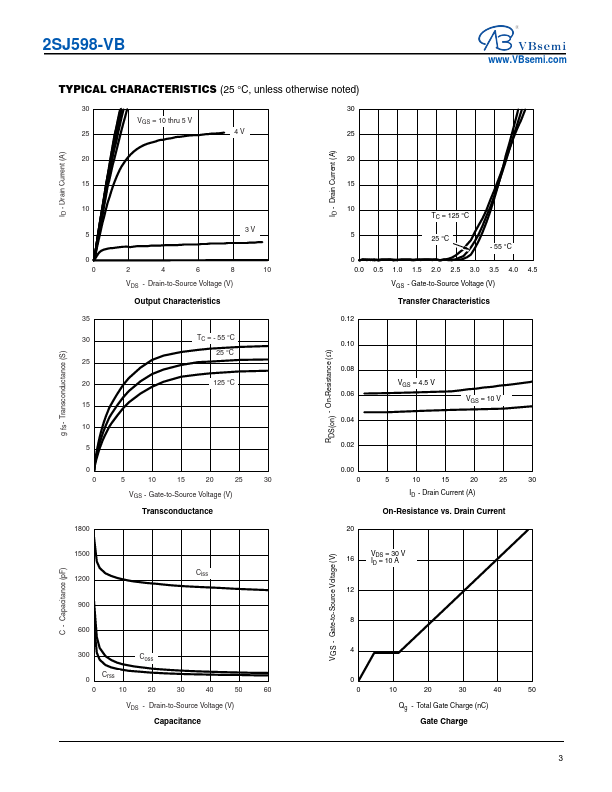

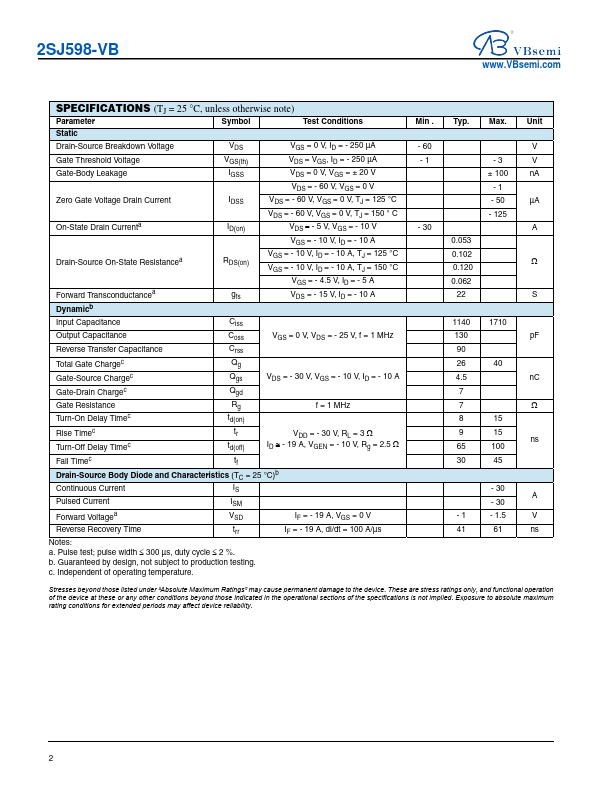

2SJ598-VB 2SJ598-VB Datasheet P-Channel 60 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () - 60 0.053 at VGS = - 10 V 0.062 at VGS = - 4.5 V ID (A)d - 25 - 20 Qg (Typ) 26 TO-251 FEATURES • Halogen-free According to IEC 61249-2-21 Definition • Trench Power MOSFET • 100 % UIS Tested • Compliant to RoHS Directive 2002/95/EC APPLICATIONS • High Side Switch for Full Bridge Converter • DC/DC Converter for LCD Display S G GDS Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise note) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 150 °C) TC = 25 °C TC = 125 °C ID Pulsed Drain Current IDM Avalanche Current, Single Pulse Repetitive Avalanche Energy, Single Pulsea IAS L = 0.
