AO4824 - 30V Dual N-Channel MOSFET

Key Features

  • Halogen-free.
  • Trench Power MOSFET.
  • Optimized for High-Side Synchronous Rectifier Operation.
  • 100 % Rg Tested.
  • 100 % UIS Tested S1 1 G1 2 S2 3 G2 4 SO-8 8 D1 7 D1 6 D2 5 D2.

📥 Download Datasheet

Datasheet Details

Part number AO4824
Manufacturer VBsemi
File Size 193.73 KB
Description 30V Dual N-Channel MOSFET
Datasheet download datasheet AO4824 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4824 Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4824L 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4824L Dual N-Channel MOSFET Kexin
AO4824L-HF Dual N-Channel MOSFET Kexin
AO4821 Dual P-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by VBsemi

Part Number Description
AO4821 20V Dual P-Channel MOSFET
AO4822A 30V Dual N-Channel MOSFET
AO4826 Dual N-Channel 60V MOSFET
AO4828 60V Dual N-Channel MOSFET
AO4800 Dual N-Channel 30V MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

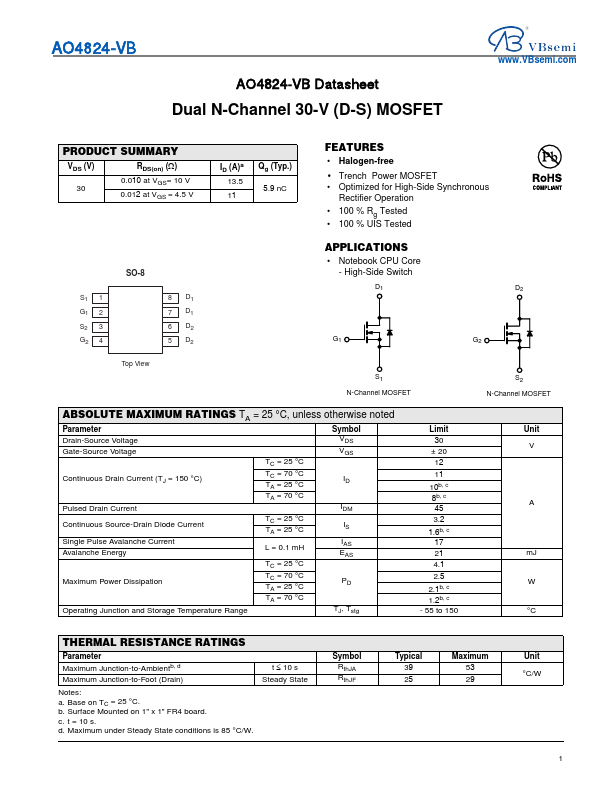

AO4824-VB AO4824-VB Datasheet Dual N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 30 0.010 at VGS= 10 V 0.012 at VGS = 4.5 V ID (A)a 13.5 11 Qg (Typ.) 5.
