| Part number | AO4822A |
|---|---|
| Manufacturer | VBsemi |
| File Size | 243.70 KB |
| Description | 30V Dual N-Channel MOSFET |
| Datasheet | AO4822A-VBsemi.pdf |
|
|

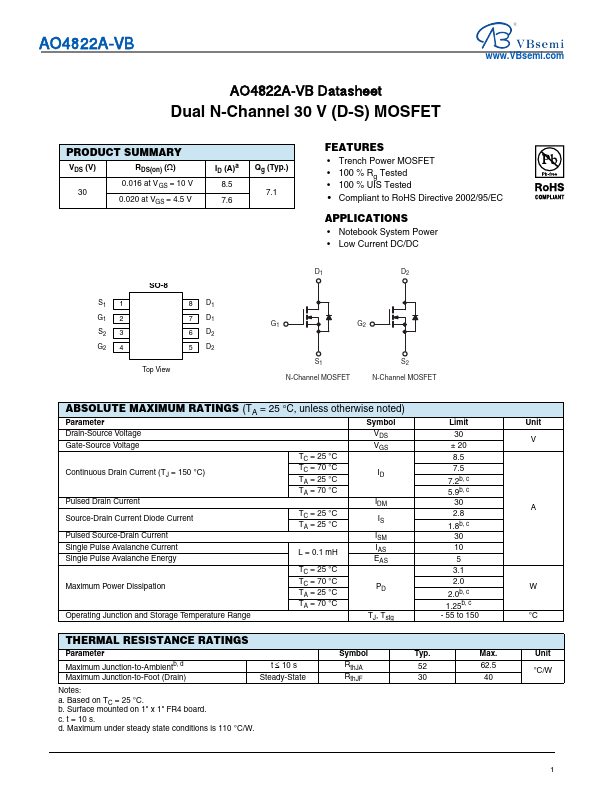

AO4822A-VB .VBsemi. AO4822A-VB Datasheet Dual N-Channel 30 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () 0.016 at VGS = 10 V 30 0.020 at VGS = 4.5 V ID (A)a 8.5 7.6 Qg (Typ.) 7.1 FEATURES • Trench Power MOSFET • 100 % Rg Tested • 100 % UIS Tested • pliant to RoHS Directive 2002/95/EC
