AO4828 - 60V Dual N-Channel MOSFET

Key Features

  • Trench power MOSFET.
  • 100 % Rg and UIS tested D1 D2 G1 G2 S1 S2 N-Channel MOSFET N-Channel MOSFET.

📥 Download Datasheet

Datasheet Details

Part number AO4828
Manufacturer VBsemi
File Size 236.68 KB
Description 60V Dual N-Channel MOSFET
Datasheet download datasheet AO4828 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4828 Dual N-Channel MOSFET EVVOSEMI
AO4828 Dual N-Channel MOSFET Kexin
AO4828 60V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4828 60V Dual N-ChanneI MOSFET UMW
AO4821 Dual P-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by VBsemi

Part Number Description
AO4821 20V Dual P-Channel MOSFET
AO4822A 30V Dual N-Channel MOSFET
AO4824 30V Dual N-Channel MOSFET
AO4826 Dual N-Channel 60V MOSFET
AO4800 Dual N-Channel 30V MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

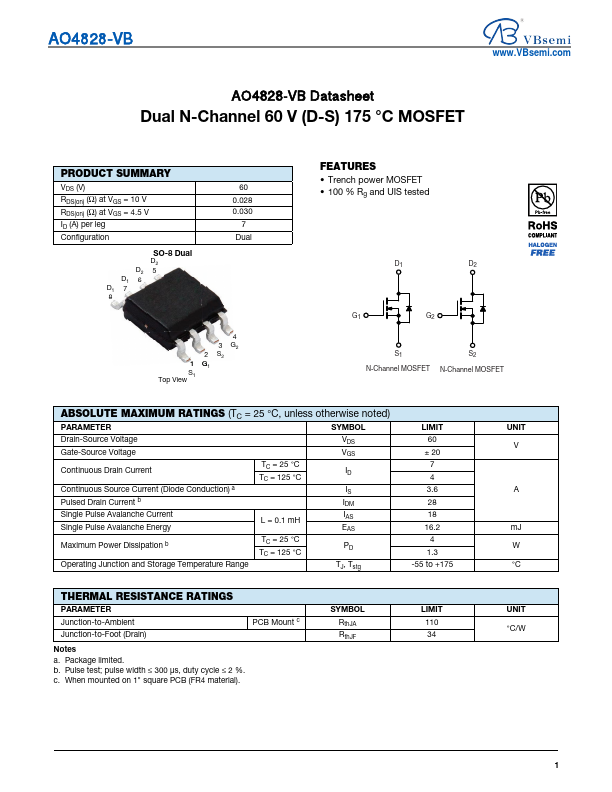

AO4828-VB www.VBsemi.com AO4828-VB Datasheet Dual N-Channel 60 V (D-S) 175 °C MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) at VGS = 10 V RDS(on) (Ω) at VGS = 4.5 V ID (A) per leg Configuration SO-8 Dual D2 D2 5 D1 6 D1 7 8 60 0.028 0.030 7 Dual 4 3 G2 2 S2 1 G1 S1 Top View FEATURES • Trench power MOSFET • 100 % Rg and UIS tested D1 D2 G1 G2 S1 S2 N-Channel MOSFET N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Continuous Source Current (Diode Conduction) a Pulsed Drain Current b Single Pulse Avalanche Current Single Pulse Avalanche Energy Maximum Power Dissipation b Operating Junction and Storage Temperature Range TC = 25 °C TC = 125 °C L = 0.
