AO4828 - Dual N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 4.5A (VGS = 10V).
  • RDS(ON) ＜ 56mΩ (VGS = 10V).
  • RDS(ON) ＜ 77mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D D 1 2 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 G1 G2 S1 S2.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resista.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4828 60V Dual N-Channel MOSFET VBsemi
AO4828 Dual N-Channel MOSFET EVVOSEMI
AO4828 60V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4828 60V Dual N-ChanneI MOSFET UMW
AO4821 Dual P-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4821 Dual P-Channel MOSFET
AO4822 Dual N-Channel MOSFET
AO4822A Dual N-Channel MOSFET
AO4824L Dual N-Channel MOSFET
AO4824L-HF Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

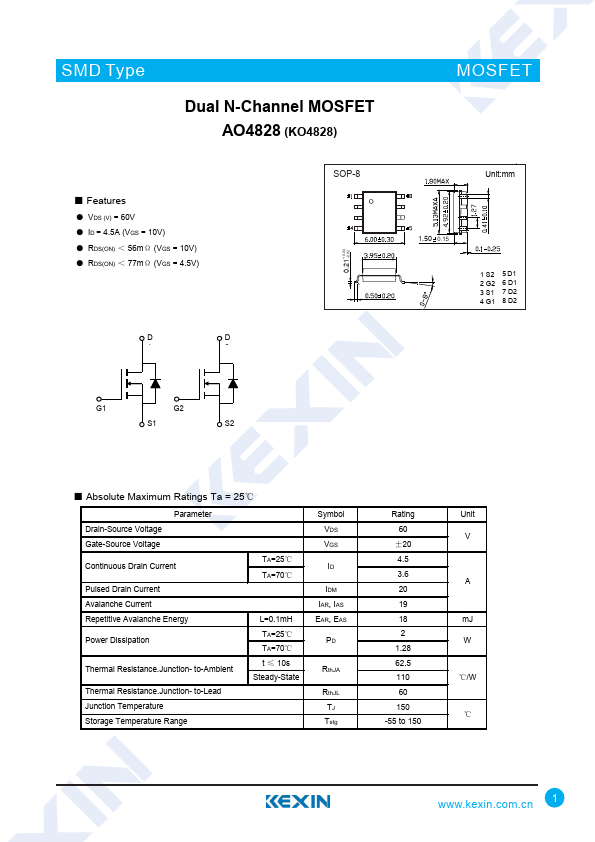

SMD Type Dual N-Channel MOSFET AO4828 (KO4828) ■ Features ● VDS (V) = 60V ● ID = 4.5A (VGS = 10V) ● RDS(ON) ＜ 56mΩ (VGS = 10V) ● RDS(ON) ＜ 77mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D D 1 2 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 G1 G2 S1 S2 ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ L=0.1mH TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAR, IAS EAR, EAS PD RthJA RthJL TJ Tstg Rating 60 ±20 4.5 3.6 20 19 18 2 1.28 62.
