| Part number | AO4822 |
|---|---|
| Manufacturer | Kexin Semiconductor |
| File Size | 2.33 MB |
| Description | Dual N-Channel MOSFET |
| Datasheet | AO4822-Kexin.pdf |
|
|

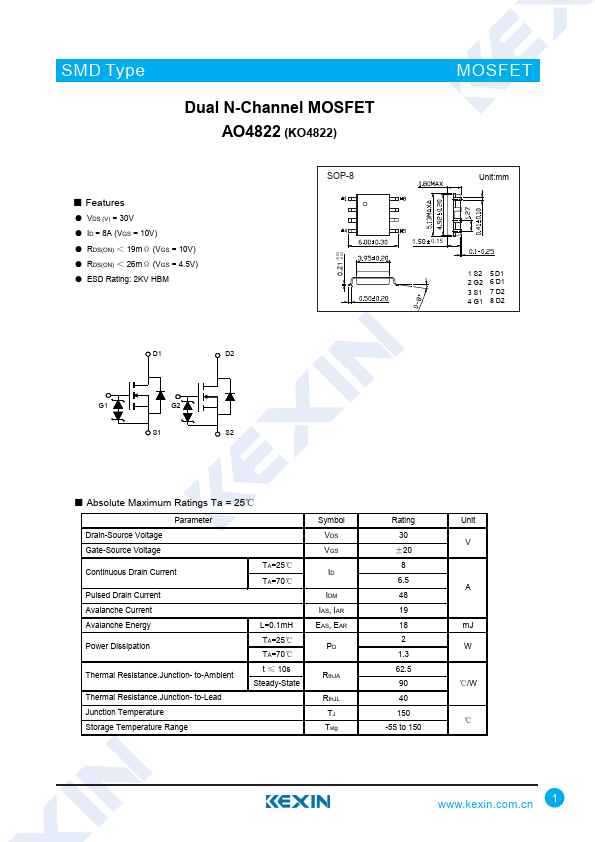

SMD Type Dual N-Channel MOSFET AO4822 (KO4822) ■ Features ● VDS (V) = 30V ● ID = 8A (VGS = 10V) ● RDS(ON) ＜ 19mΩ (VGS = 10V) ● RDS(ON) ＜ 26mΩ (VGS = 4.5V) ● ESD Rating: 2KV HBM +0.04 0.21 -0.02 SOP-8 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 D1 D2 G1 G2 S1 S2...
