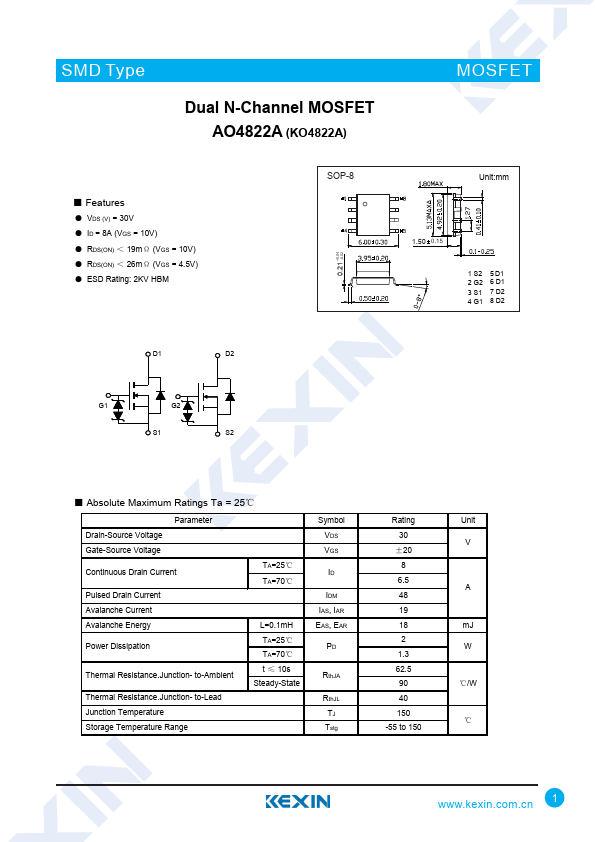

AO4822A
AO4822A is Dual N-Channel MOSFET manufactured by Kexin Semiconductor.
Features
- VDS (V) = 30V
- ID = 8A (VGS = 10V)
- RDS(ON) ＜ 19mΩ (VGS = 10V)
- RDS(ON) ＜ 26mΩ (VGS = 4.5V)
- ESD Rating: 2KV HBM
+0.04 0.21 -0.02
SOP-8
MOSFET
Unit:mm
1.50 0.15
1 S2 2 G2 3 S1 4 G1
5 D1 6 D1 7 D2 8 D2
D1
D2
G1
G2
S1
S2
- Absolute Maximum Ratings Ta = 25℃
Drain-Source Voltage Gate-Source Voltage
Parameter
Continuous Drain Current
Pulsed Drain Current Avalanche Current Avalanche Energy Power Dissipation
Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range
TA=25℃ TA=70℃
L=0.1m H TA=25℃ TA=70℃ t ≤ 10s Steady-State
Symbol VDS VGS
IDM IAS, IAR EAS, EAR
Rth JA
Rth JL TJ Tstg
Rating 30
±20 8 6.5 48 19 18 2 1.3
62.5 90 40 150 -55 to 150
Unit V
A m J W ℃/W ℃
.kexin..cn 1
