AZ934 - 20 AMP SUB-MINIATURE POWER RELAY

Features

  • Low cost Up to 20 Amp switching capability in a compact size Sealed Two separate relays in DPDT version Quiet operation Vibration and shock resistant Designed for power windows, power seats and wiper.

📥 Download Datasheet

Datasheet Details

Part number AZ934
Manufacturer ZETTLER Electronics
File Size 159.66 KB
Description 20 AMP SUB-MINIATURE POWER RELAY
Datasheet download datasheet AZ934 Datasheet

📁 Similar Datasheet

  • AZ9315-01F - Transient Voltage Suppressing Device (msksemi)
  • AZ9371 - SENSITIVE SUBMINIATURE RELAY (Zettler)
  • AZ9375 - SUBMINIATURE RELAY (American Zettler)
  • AZ9143-04F - TVS DIODE (Leiditech)
  • AZ920 - ULTRA-SENSITIVE SUBMINIATURE RELAY (American Zettler)
  • AZ9201 - ULTRA-SENSITIVE SUBMINIATURE RELAY (Zettler)
  • AZ921 - ULTRA-SENSITIVE SUBMINIATURE RELAY (Zettler)
  • AZ9405 - MINIATURE POWER RELAY (American Zettler)
  • AZ942 - 16 AMP MINIATURE PC BOARD RELAY (ETC)
  • AZ942-1CH-12D - 16 AMP MINIATURE PC BOARD RELAY (ETC)
Other Datasheets by ZETTLER Electronics
  • AZ935 - 20 AMP SUB-MINIATURE POWER RELAY
  • AZ936 - 10 AMP LOW PROFILE POWER RELAY
  • AZ937 - SENSITIVE SUBMINIATURE RELAY
  • AZ943S - 15 AMP MINIATURE PC BOARD RELAY SMT
  • AZ970 - (AZ970 / AZ971) 40 AMP MINIATURE POWER RELAY
  • AZ971 - (AZ970 / AZ971) 40 AMP MINIATURE POWER RELAY

Full PDF Text Transcription

Click to expand full text

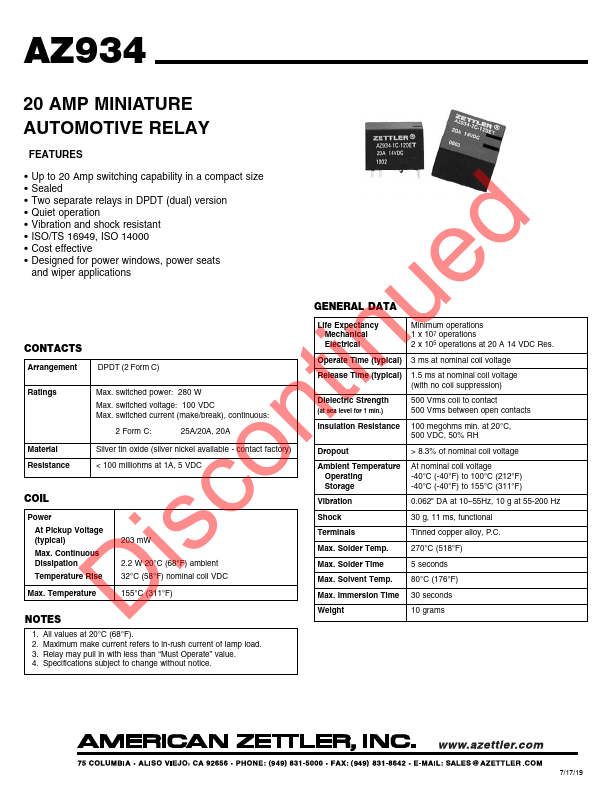

www.DataSheet4U.com AZ934 20 AMP SUB-MINIATURE POWER RELAY FOR AUTOMOTIVE USE FEATURES • • • • • • • Low cost Up to 20 Amp switching capability in a compact size Sealed Two separate relays in DPDT version Quiet operation Vibration and shock resistant Designed for power windows, power seats and wiper applications • QS-9000 Factory CONTACTS Arrangement Ratings DPDT (2 Form C) SPDT (1 Form C) Max. switched power: 280 W Max. switched voltage: 100 VDC Max. switched current (make/break), continuous: 1 Form C: 25A/20A, 20A 2 Form C: 25A/20A, 20A Material Resistance Silver nickel, silver tin oxide available < 100 milliohms at 1A, 5 VDC GENERAL DATA Life Expectancy Mechanical Electrical Operate Time (typical) Release Time (typical) Dielectric Strength (at sea level for 1 min.
