AZ935 - 20 AMP SUB-MINIATURE POWER RELAY

Key Features

  • Low cost Up to 20 Amp switching capability in a compact size Sealed Two separate relays in one package Vibration and shock resistant Designed for power windows, power seats and wiper.

📥 Download Datasheet

Datasheet Details

Part number AZ935
Manufacturer ZETTLER Electronics
File Size 110.28 KB
Description 20 AMP SUB-MINIATURE POWER RELAY
Datasheet download datasheet AZ935 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AZ9315-01F Transient Voltage Suppressing Device msksemi
AZ9371 SENSITIVE SUBMINIATURE RELAY Zettler
AZ9375 SUBMINIATURE RELAY American Zettler
AZ9143-04F TVS DIODE Leiditech
AZ920 ULTRA-SENSITIVE SUBMINIATURE RELAY American Zettler

Other Datasheets by ZETTLER Electronics

Part Number Description
AZ934 20 AMP SUB-MINIATURE POWER RELAY
AZ936 10 AMP LOW PROFILE POWER RELAY
AZ937 SENSITIVE SUBMINIATURE RELAY
AZ943S 15 AMP MINIATURE PC BOARD RELAY SMT
AZ970 (AZ970 / AZ971) 40 AMP MINIATURE POWER RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

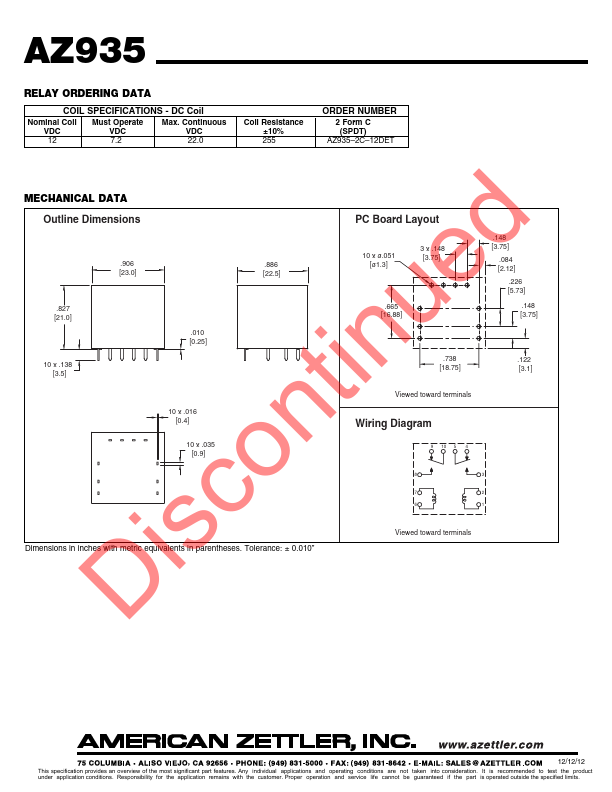

www.DataSheet4U.com AZ935 20 AMP SUB-MINIATURE POWER RELAY FOR AUTOMOTIVE USE FEATURES • • • • • • Low cost Up to 20 Amp switching capability in a compact size Sealed Two separate relays in one package Vibration and shock resistant Designed for power windows, power seats and wiper applications • Extremely silent operation • QS-9000 Factory CONTACTS Arrangement Ratings DPDT (2 Form C) Max. switched power: 280 W Max. switched voltage: 100 VDC Max. switched current (make/break), continuous: 2 Form C: 25A/20A, 20A Material Resistance Silver nickel, silver tin oxide available < 100 milliohms at 1A, 5 VDC Dielectric Strength (at sea level for 1 min.
