AZ833

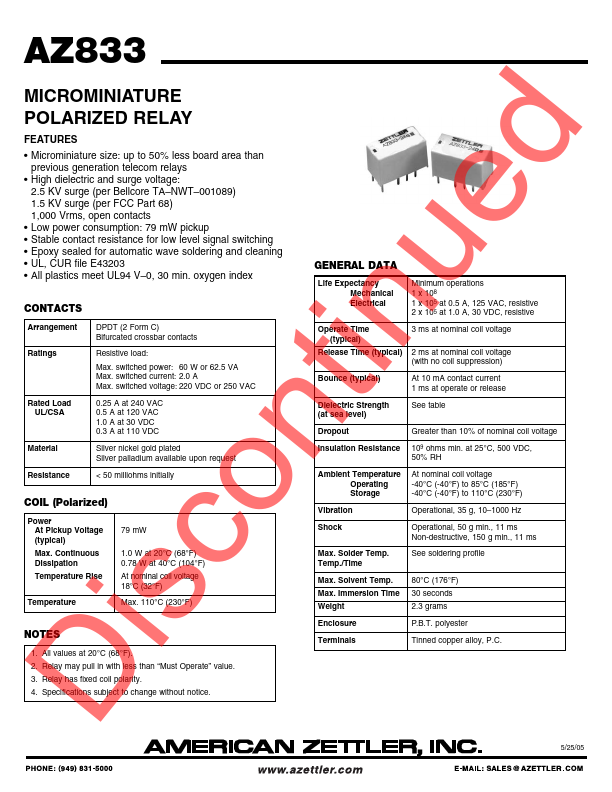

Overview
- Microminiature size: up to 50% less board area than previous generation telecom relays
- High dielectric and surge voltage: 2.5 KV surge (per Bellcore TA-NWT-001089) 1.5 KV surge (per FCC Part 68) 1,000 Vrms, open contacts
- Low power consumption: 79 mW pickup
- Stable contact resistance for low level signal switching
- Epoxy sealed for automatic wave soldering and cleaning
- UL, CUR file E43203
- All plastics meet UL94 V-0, 30 min. oxygen index CONTACTS Arrangement Ratings Rated Load UL/CSA Material Resistance DPDT (2 Form C) Bifurcated crossbar contacts Resistive load: Max. switched power: 60 W or 62.5 VA Max. switched current: 2.0 A Max. switched voltage: 220 VDC or 250 VAC
- 25 A at 240 VAC 0.5 A at 120 VAC 1.0 A at 30 VDC 0.3 A at 110 VDC Silver nickel gold plated Silver palladium available upon request < 50 milliohms initially COIL (Polarized) Power At Pickup Voltage (typical) Max. Continuous Dissipation Temperature Rise 79 mW
- 0 W at 20°C (68°F) 0.78 W at 40°C (104°F) At nominal coil voltage 18°C (32°F) Temperature Max. 110°C (230°F) NOTES

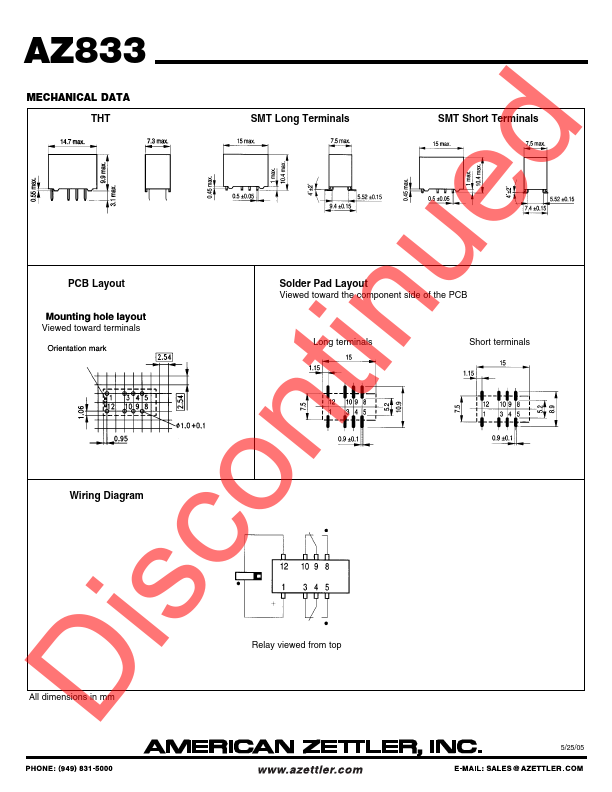

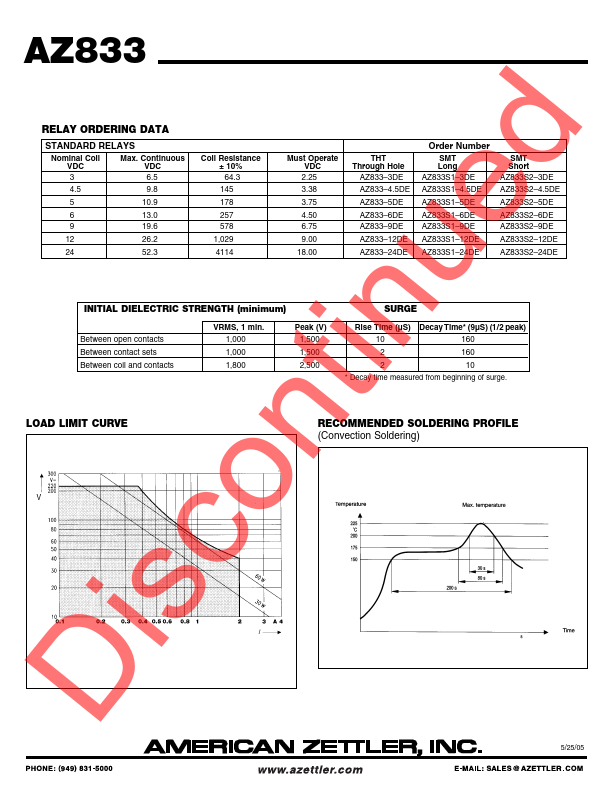

- All values at 20°C (68°F).
