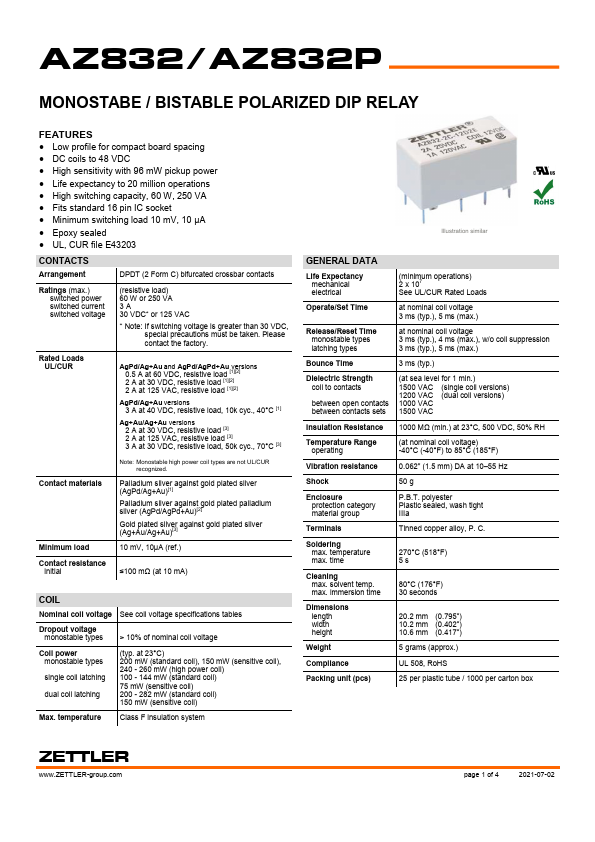

Datasheet Summary
AZ832/AZ832P
MONOSTABE / BISTABLE POLARIZED DIP RELAY
Features
- Low profile for pact board spacing
- DC coils to 48 VDC
- High sensitivity with 96 mW pickup power
- Life expectancy to 20 million operations
- High switching capacity, 60 W, 250 VA
- Fits standard 16 pin IC socket
- Minimum switching load 10 mV, 10 μA
- Epoxy sealed
- UL, CUR file E43203
CONTACTS
Arrangement
DPDT (2 Form C) bifurcated crossbar contacts
Ratings (max.) switched power switched current switched voltage
(resistive load) 60 W or 250 VA 3A 30 VDC- or 125 VAC
- Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory.
Rated Loads UL/CUR
AgPd/Ag+Au...
