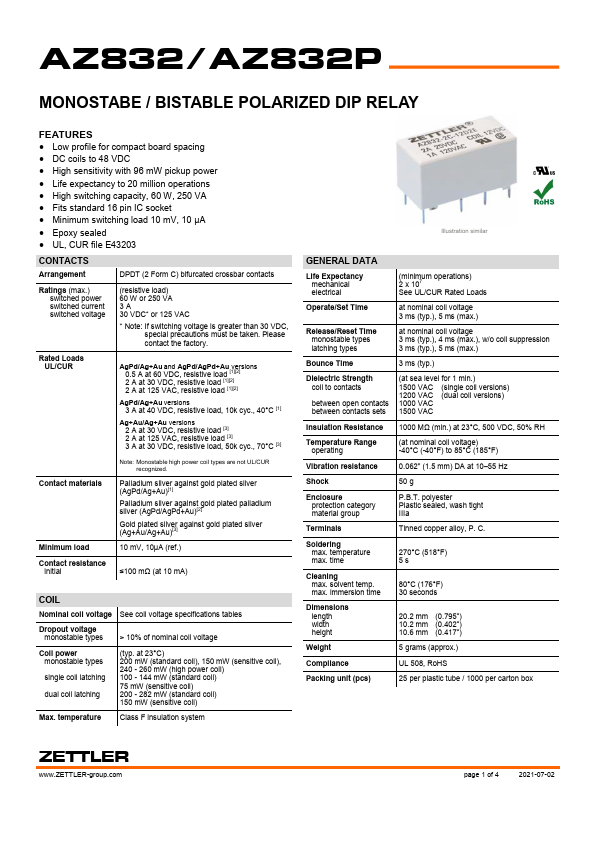

AZ832P
Overview
- Low profile for compact board spacing
- DC coils to 48 VDC
- High sensitivity with 96 mW pickup power
- Life expectancy to 20 million operations
- High switching capacity, 60 W, 250 VA
- Fits standard 16 pin IC socket
- Minimum switching load 10 mV, 10 μA
- Epoxy sealed
- UL, CUR file E43203 CONTACTS Arrangement DPDT (2 Form C) bifurcated crossbar contacts Ratings (max.) switched power switched current switched voltage (resistive load) 60 W or 250 VA 3A 30 VDC* or 125 VAC
- Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. Rated Loads UL/CUR AgPd/Ag+Au and AgPd/AgPd+Au versions 0.5 A at 60 VDC, resistive load [1][2] 2 A at 30 VDC, resistive load [1][2] 2 A at 125 VAC, resistive load [1][2] AgPd/Ag+Au versions 3 A at 40 VDC, resistive load, 10k cyc., 40°C [1] Ag+Au/Ag+Au versions 2 A at 30 VDC, resistive load [3] 2 A at 125 VAC, resistive load [3] 3 A at 30 VDC, resistive load, 50k cyc., 70°C [3] Note: Monostable high power coil types are not UL/CUR recognized. Contact materials Palladium silver against gold plated silver (AgPd/Ag+Au)[1] Palladium silver against gold plated palladium silver (AgPd/AgPd+Au)[2] Gold plated silver against gold plated silver (Ag+Au/Ag+Au)[3] Minimum load 10 mV, 10µA (ref.) Contact resistance initial ≤100 mΩ (at 10 mA) COIL Nominal coil voltage See coil voltage specifications tables Dropout voltage monostable types > 10% of nominal coil voltage Coil power monostable types single coil latching dual coil latching (typ. at 23°C) 200 mW (standard coil), 150 mW (sensitive coil), 240 - 260 mW (high power coil) 100 - 144 mW (standard coil) 75 mW (sensitive coil) 200 - 282 mW (standard coil) 150 mW (sensitive coil) Max. temperature Class F insulation system Illustration similar
