LMK6P - High-Performance BAW Oscillator

This page provides the datasheet information for the LMK6P, a member of the LMK6C High-Performance BAW Oscillator family.

Description

Texas Instruments' Bulk-Acoustic Wave (BAW) is a micro-resonator technology that enables integration of high-precision BAW resonator directly into packages with ultra-low jitter clock circuitry.

BAW is fully designed and manufactured at TI factories like other silicon-based fabrication processes.

Features

  • High-performance differential and single-ended output Oscillator, supporting any fixed frequency within the below range:.
  • LMK6D: 1MHz to 400MHz, LVDS output.
  • LMK6H: 1MHz to 400MHz, HCSL output.
  • LMK6P: 1MHz to 400MHz, LVPECL output.
  • LMK6C: 1MHz to 200MHz, LVCMOS output.
  • Ultra-low jitter:.
  • LMK6D/LMK6H/LMK6P: 100fs typical / 125fs maximum RMS jitter at 156.25MHz (12kHz to 20MHz).
  • LMK6C: 350fs typical / 500fs maximum RMS jitter.

📥 Download Datasheet

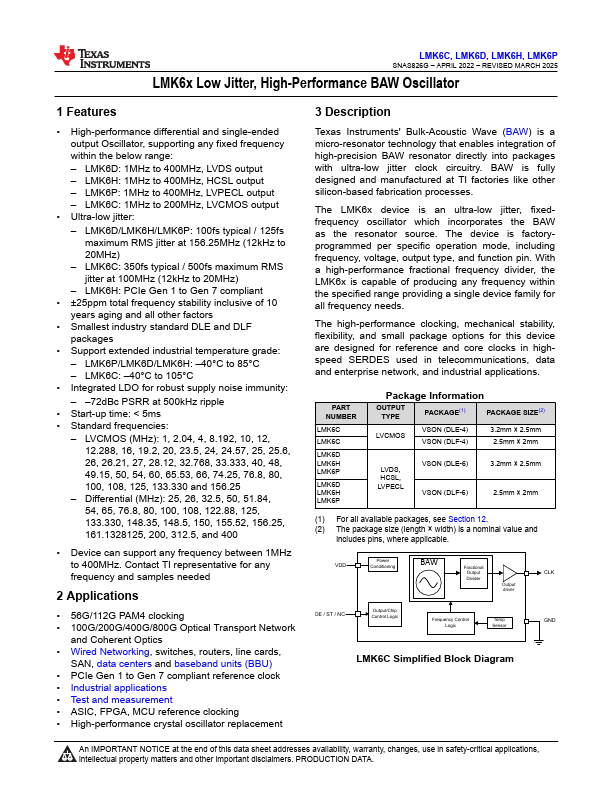

Datasheet preview – LMK6P

Datasheet Details

Part number LMK6P
Manufacturer Texas Instruments
File Size 3.27 MB
Description High-Performance BAW Oscillator
Datasheet download datasheet LMK6P Datasheet

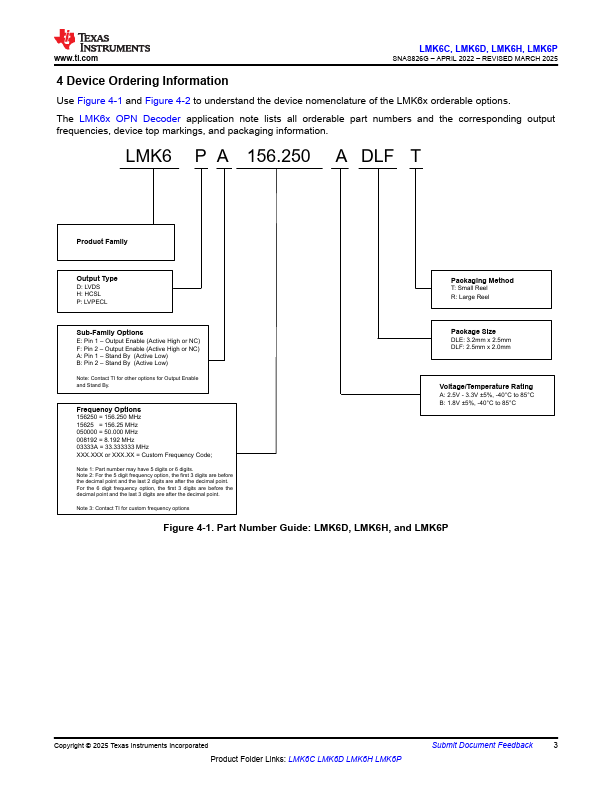

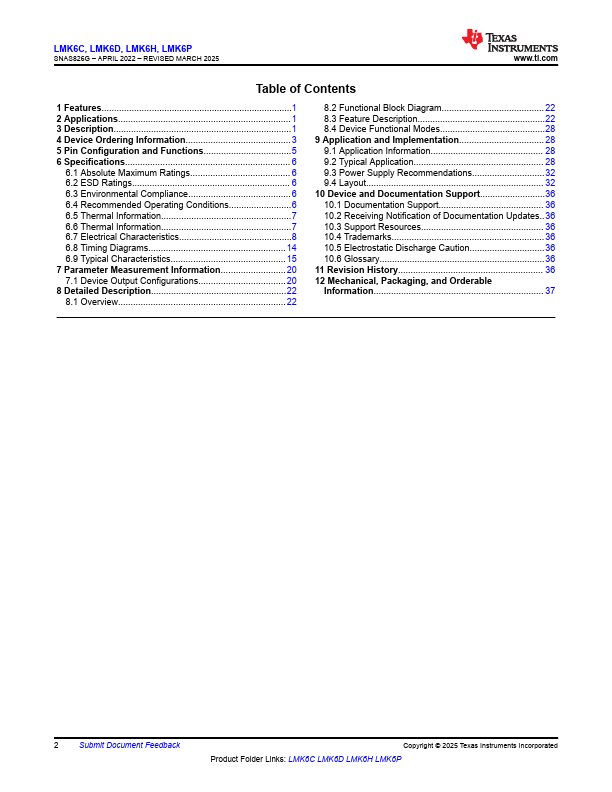

Additional preview pages of the LMK6P datasheet.

📁 Similar Datasheet

  • LMK01000 - (LMK01000 - LMK01020) 1.6 GHz High Performance Clock Buffer (National Semiconductor)
  • LMK01010 - (LMK01000 - LMK01020) 1.6 GHz High Performance Clock Buffer (National Semiconductor)
  • LMK01020 - (LMK01000 - LMK01020) 1.6 GHz High Performance Clock Buffer (National Semiconductor)
  • LMK02000 - Precision Clock Conditioner (National Semiconductor)
  • LMK02002 - Precision Clock Conditioner (National Semiconductor)
  • LMK03000 - (LMK03000 / LMK03001) Precision Clock Conditioner (National Semiconductor)
  • LMK03000C - (LMK03000 / LMK03001) Precision Clock Conditioner (National Semiconductor)
  • LMK03001 - (LMK03000 / LMK03001) Precision Clock Conditioner (National Semiconductor)
  • LMK03001C - (LMK03000 / LMK03001) Precision Clock Conditioner (National Semiconductor)
  • LMK03002 - Precision Clock Conditioner (National Semiconductor)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text
LMK6C, LMK6D, LMK6H, LMK6P SNAS826E – APRIL 2022 – REVISED APRIL 2024 LMK6x Low Jitter, High-Performance BAW Oscillator 1 Features • High-performance differential and single-ended output Oscillator, supporting any fixed frequency within the below range: – LMK6D: 1MHz to 400MHz, LVDS output – LMK6H: 1MHz to 400MHz, HCSL output – LMK6P: 1MHz to 400MHz, LVPECL output – LMK6C: 1MHz to 200MHz, LVCMOS output • Ultra-low jitter: – LMK6D/LMK6H/LMK6P: 100fs typical / 125fs maximum RMS jitter at 156.
