BAV70 Datasheet PDF (High-speed switching diodes)

BAV70 - High-speed switching diodes

Description

High-speed switching diodes, encapsulated in small Surface-Mounted Device (SMD) plastic packages.

Table 1.

Features

High switching speed: trr  4 ns.
Low leakage current.
Small SMD plastic packages.
Low capacitance: Cd  1.5 pF.
Reverse voltage: VR  100 V.
AEC-Q101 qualified 1.3.

Datasheet Details

Part number	BAV70
Manufacturer	nexperia
File Size	856.59 KB
Description	High-speed switching diodes
Datasheet	BAV70 Datasheet

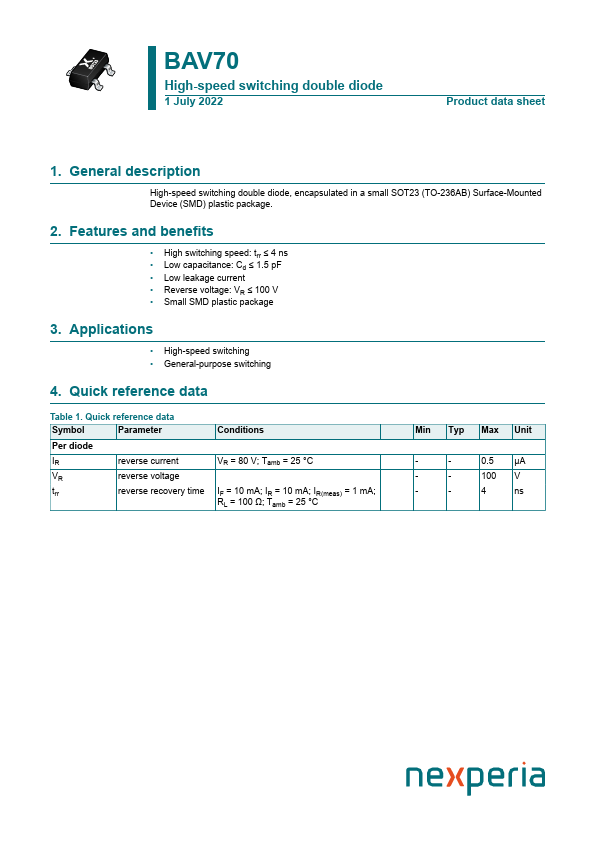

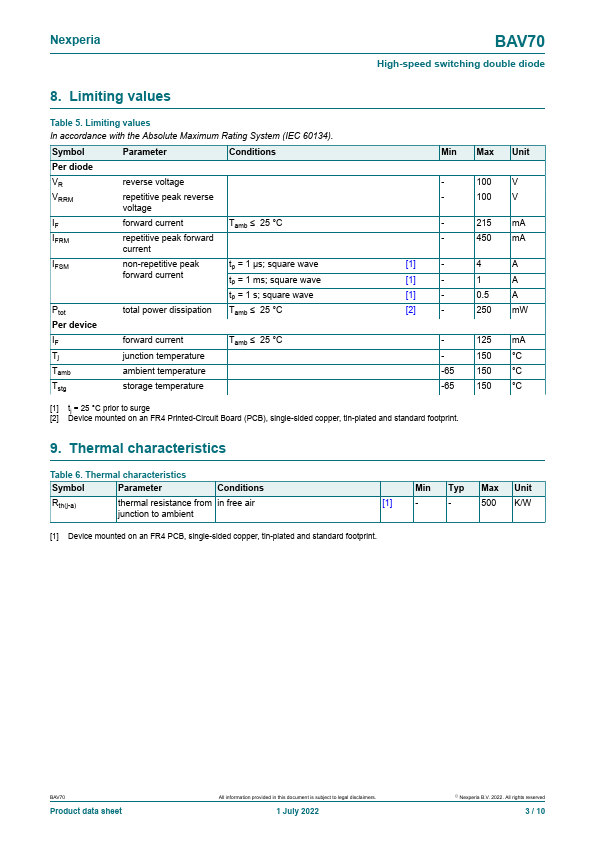

Additional preview pages of the BAV70 datasheet.

📁 Similar Datasheet

BAV70 - SMALL SIGNAL DIODE (EIC)

BAV70 - Diodes (Multicomp)

BAV70 - High-speed switching diodes (NXP)

BAV70 - Small Signal Switching Diode (Vishay Telefunken)

BAV70 - Small Signal Diode (Fairchild Semiconductor)

BAV70 - SMD Small Signal Diodes (Diotec)

BAV70 - SWITCHING DIODE (Sangdest Microelectronics)

BAV70 - SURFACE MOUNT SWITCHING DIODES (TIPTEK)

BAV70 - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)

BAV70 - 200 / 215mA Surface Mount Switching Diodes (CITC)

Full PDF Text Transcription

Click to expand full text

BAV70 series High-speed switching diodes Rev. 8 — 18 March 2015 Product data sheet 1. Product profile 1.1 General description High-speed switching diodes, encapsulated in small Surface-Mounted Device (SMD) plastic packages. Table 1. Product overview Type number Package Nexperia JEITA BAV70 SOT23 - BAV70M SOT883 SC-101 BAV70S SOT363 SC-88 BAV70T BAV70W SOT416 SOT323 SC-75 SC-70 JEDEC Package configuration TO-236AB small - leadless ultra small - very small - ultra small - very small Configuration dual common cathode dual common cathode quadruple common cathode/common cathode dual common cathode dual common cathode 1.2 Features and benefits  High switching speed: trr  4 ns  Low leakage current  Small SMD plastic packages  Low capacitance: Cd  1.
