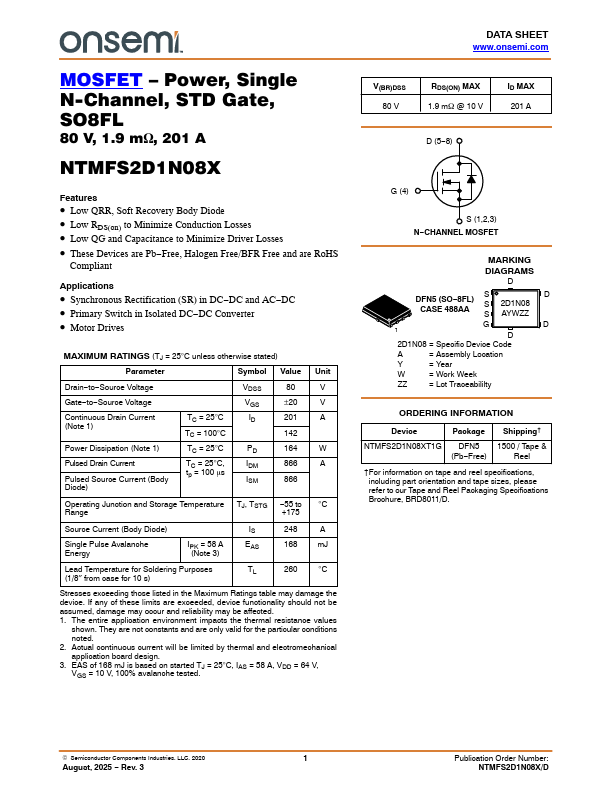

NTMFS2D1N08X
NTMFS2D1N08X is N-Channel Power MOSFET manufactured by onsemi.
Features
- Low QRR, Soft Recovery Body Diode
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant
Applications
- Synchronous Rectification (SR) in DC- DC and AC- DC
- Primary Switch in Isolated DC- DC Converter
- Motor Drives
MAXIMUM RATINGS (TJ = 25°C unless otherwise stated)
Parameter
Symbol Value Unit
Drain- to- Source Voltage
VDSS
Gate- to- Source Voltage
±20
Continuous Drain Current (Note 1)
TC = 25°C
TC = 100°C
Power Dissipation (Note 1)
TC = 25°C
Pulsed Drain Current
TC = 25°C,
Pulsed Source Current (Body tp = 100 ms
Diode)
Operating Junction and Storage Temperature TJ, TSTG
- 55 to °C
Range
+175
Source Current (Body...
