2SD2097

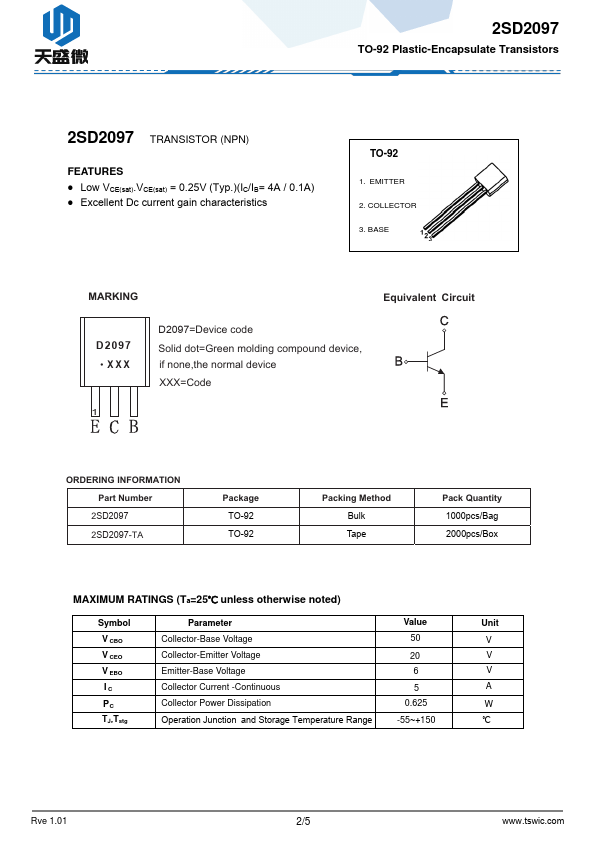

FEATURES z Low VCE(sat).VCE(sat) = 0.25V (Typ.)(IC/IB= 4A / 0.1A) z Excellent Dc current gain characteristics
TO-92
1. EMITTER 2. COLLECTOR 3. BASE
0$5.,1-
Equivalent Circuit
D2097 z ;;;
D2097 'HYLFH FRGH 6ROLG GRW
- UHHQ PROGLQJ FRPSRXQG GHYLFH LI QRQHWKH QRUPDO GHYLFH ;;; &RGH
ORDERING INFORMATION Part Number
SD2097 SD20977$
Package TO-92 TO-92
Packing Method Bulk Tape
Pack Quantity 1000pcs/Bag 2000pcs/Box
MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)
Symbol V CBO V CEO V EBO IC PC TJ,Tstg
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Power Dissipation Operation Junction and Storage Temperature Range
Value 50 20 6 5
0.625 -55~+150
Unit V V V A W ℃
Rve 1.01
2/5
.tswic.
TO-92 Plastic-Encapsulate Transistors

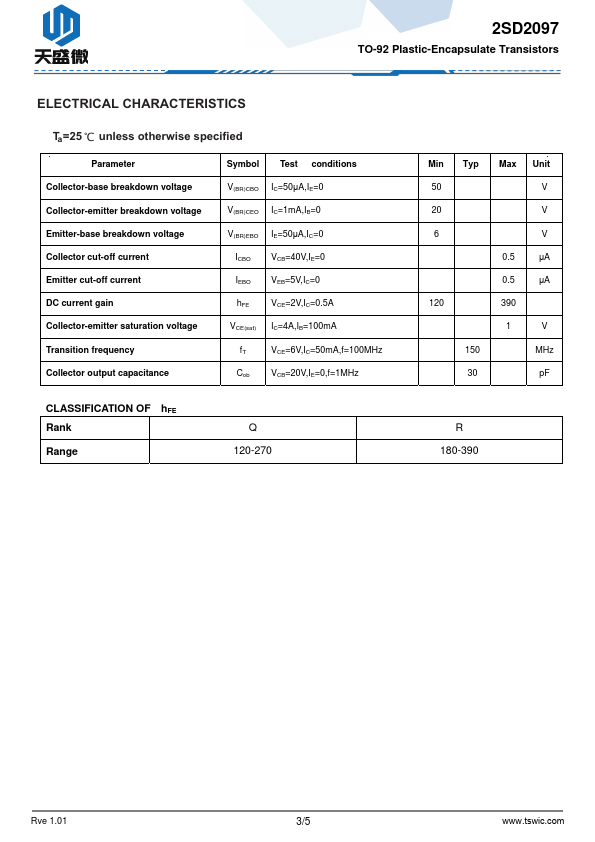

(/(&75,&$/ &+$5$&7(5,67,&6
Ta=25 Я unless otherwise specified
Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown...
