TPT488, TPT486 Datasheet - 3PEAK

TPT488, TPT486, Full Duplex RS-485 Transceivers

The TPT486/488 is IEC61000 ESD protected, which support ±12 kV IEC contact and ±15 kV IEC air discharge. 3.0V ~ 5.5V transceivers that meet the RS-485 and RS-422 standards for Full Duplex communication. Transmitters in this family deliver exceptional differential output voltages into the RS-485 requ.

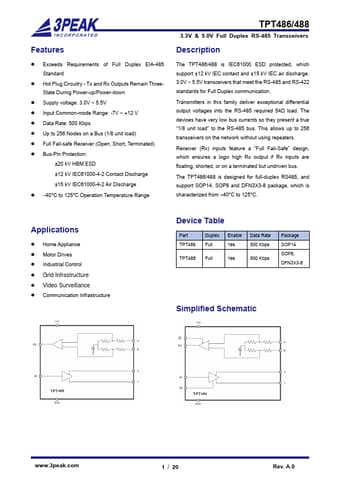

Datasheet Preview Page 1

TPT486-3PEAK.pdf

TPT488 Datasheet Preview — This datasheet PDF includes multiple part numbers: TPT488, TPT486. Please refer to the document for exact specifications by model.

TPT488 Datasheet Preview Page 2

TPT488 Datasheet Preview Page 3

Datasheet Details

Part number:

TPT488, TPT486

Manufacturer:

3PEAK

File Size:

1.00 MB

Description:

Full Duplex RS-485 Transceivers

Note:

This datasheet PDF includes multiple part numbers: TPT488, TPT486.
Please refer to the document for exact specifications by model.

TPT488 Features

* Exceeds Requirements of Full Duplex EIA-485 Standard

* Hot Plug Circuitry - Tx and Rx Outputs Remain ThreeState During Power-up/Power-down

* Supply voltage: 3.0V ~ 5.5V

* Input Common-mode Range: -7V ~ +12 V

* Data Rate: 500 Kbps

* Up to 256 Nodes on a Bus (1/8 unit load)
