TPT480 - Full Duplex RS-485 Transceivers

TPT480 Description

.

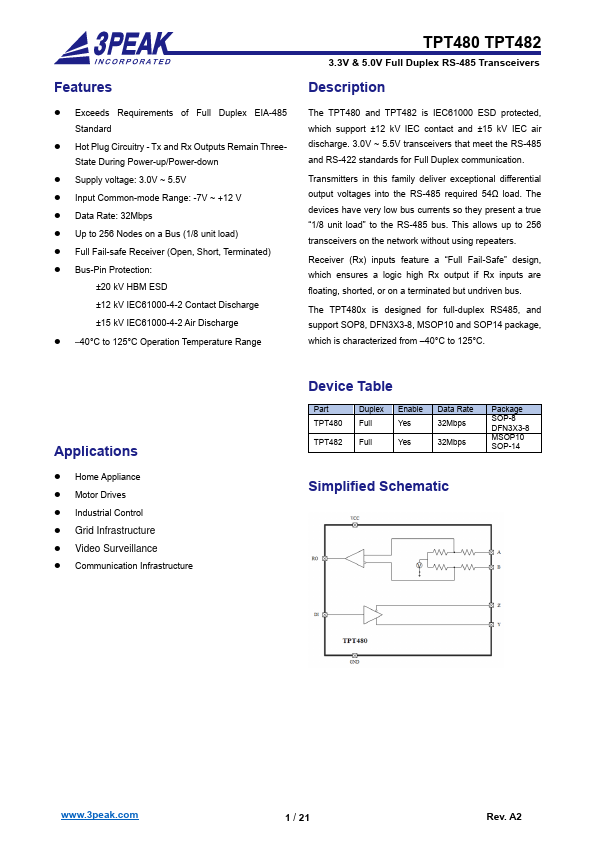

The TPT480 and TPT482 is IEC61000 ESD protected, which support ±12 kV IEC contact and ±15 kV IEC air discharge.

TPT480 Features

* Exceeds Requirements of Full Duplex EIA-485 Standard
* Hot Plug Circuitry - Tx and Rx Outputs Remain ThreeState During Power-up/Power-down
* Supply voltage: 3.0V ~ 5.5V
* Input Common-mode Range: -7V ~ +12 V
* Data Rate: 32Mbps
* Up to 256 Nodes on a Bus (1/8 unit load)

TPT480 Applications

* Home Appliance
* Motor Drives
* Industrial Control
* Grid Infrastructure
* Video Surveillance
* Communication Infrastructure Device Table Part TPT480 TPT482 Duplex Full Full Enable Yes Yes Data Rate 32Mbps 32Mbps Package SOP-8 DFN3X3-8 MSOP10 SOP-14 Simplified Schema
