TPT486 - Full Duplex RS-485 Transceivers

TPT486 Description

.
The TPT486/488 is IEC61000 ESD protected, which support ±12 kV IEC contact and ±15 kV IEC air discharge.

TPT486 Features

* Exceeds Requirements of Full Duplex EIA-485 Standard
* Hot Plug Circuitry - Tx and Rx Outputs Remain ThreeState During Power-up/Power-down
* Supply voltage: 3.0V ~ 5.5V
* Input Common-mode Range: -7V ~ +12 V
* Data Rate: 500 Kbps
* Up to 256 Nodes on a Bus (1/8 unit load)

TPT486 Applications

* Home Appliance
* Motor Drives
* Industrial Control
* Grid Infrastructure
* Video Surveillance
* Communication Infrastructure Device Table Part TPT486 Duplex Full Enable Yes Data Rate 500 Kbps TPT488 Full Yes 500 Kbps Package SOP14 SOP8, DFN3X3-8 Simplified Schemat

📥 Download Datasheet

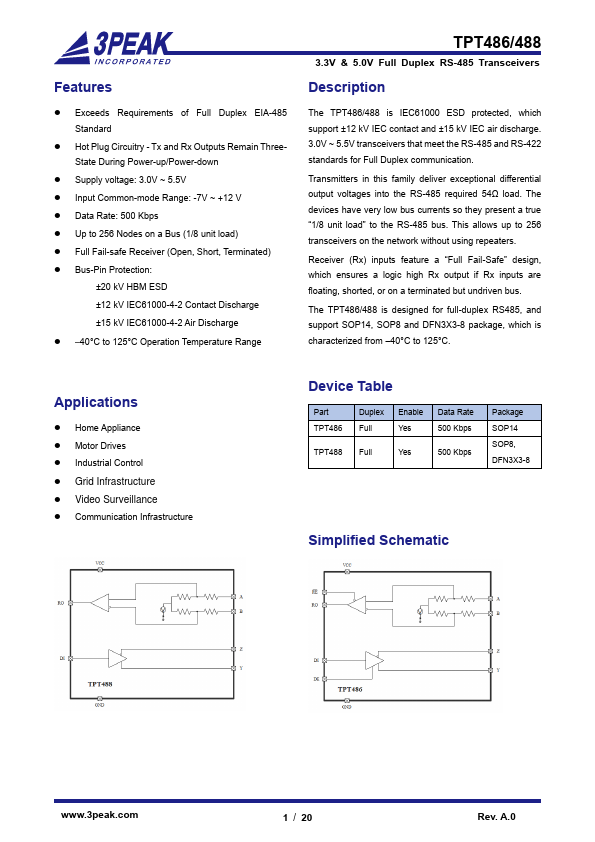

Preview of TPT486 PDF

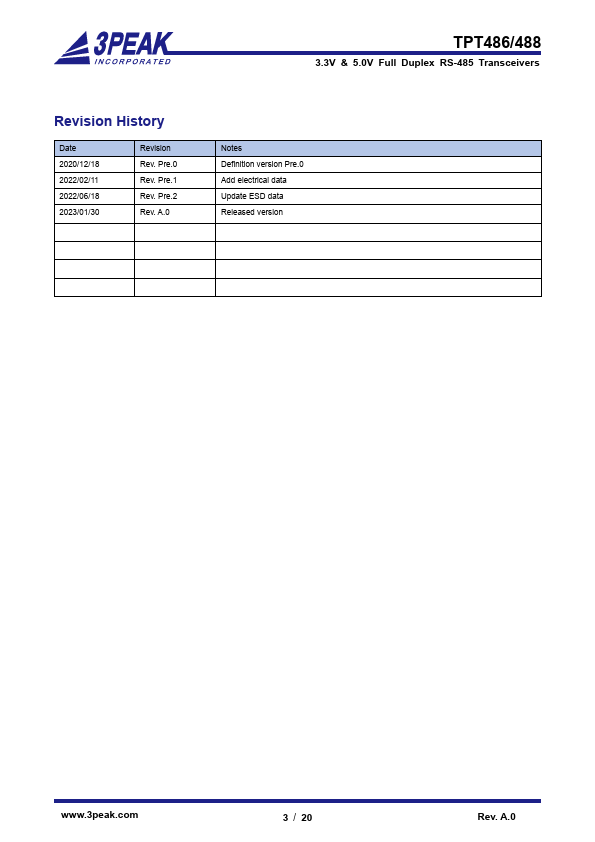

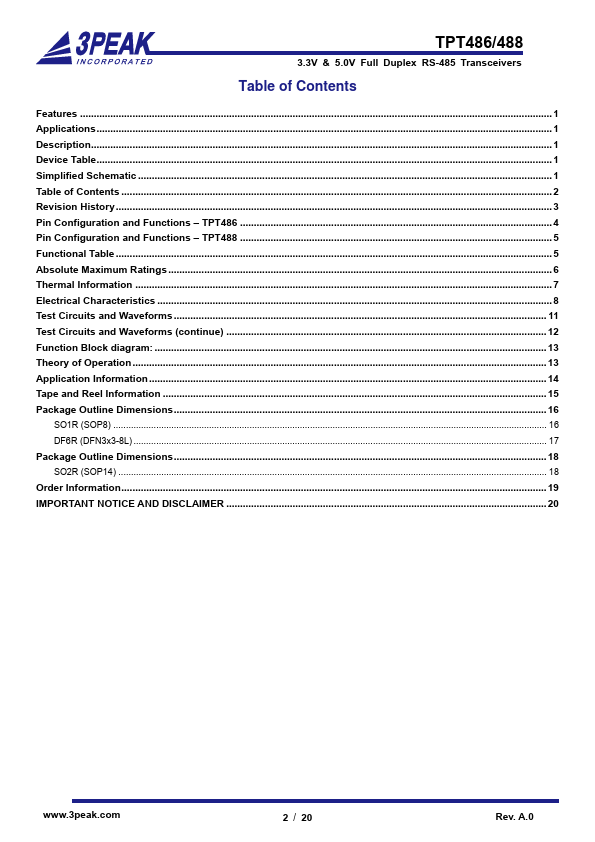

datasheet Preview Page 2 datasheet Preview Page 3
