Description
TPT481 .
The TPT481 are IEC61000 ESD protected, 3.
Features
* Exceeds Requirements of EIA-485 Standard
* Hot Plug Circuitry - Tx and Rx Outputs Remain Three-
State During Power-up/Power-down
* Data Rate: 20 Mbps
* Up to 256 Nodes on a Bus (1/8 unit load) at 20Mbps
* Full Fail-safe Receiver (Open, Short, Terminated)
* Wide Supply Volta
Applications
* Motor Drives
* Industrial Control
* Communication Infrastructure
Device Table
Part TPT481
Duplex Half
Enable Yes
Data Rate 20Mbps
Nodes 256

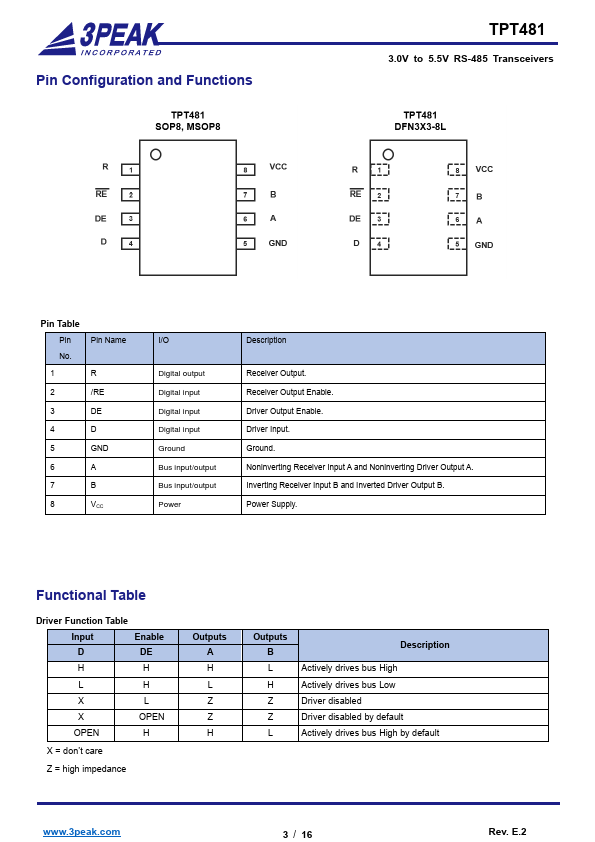

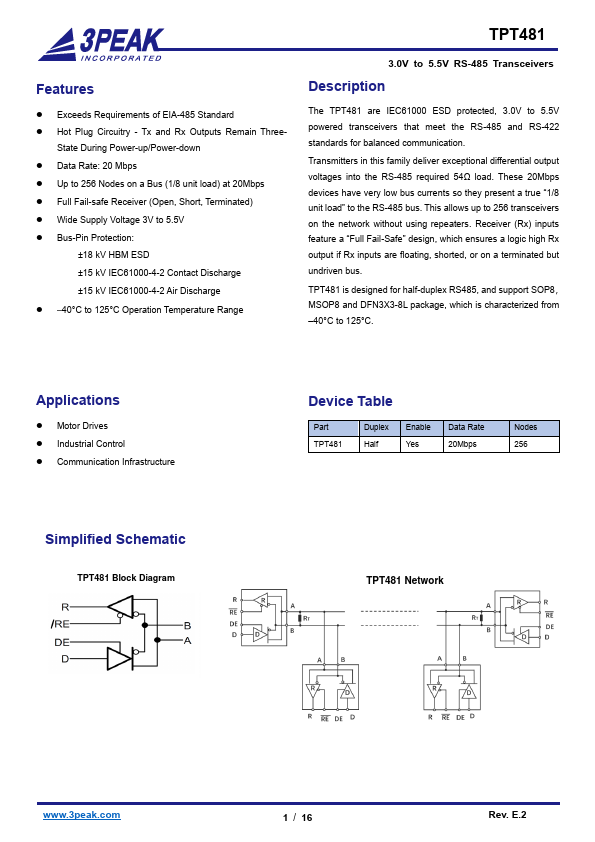

Simplified Schematic
TPT481 Block Diagram
TPT481, TPT487
TPT482, TPT488
TPTT48P1TN4e8t2wAor,kTPT488A
