TPT482, TPT480 - Full Duplex RS-485 Transceivers

TPT482 Description

.
The TPT480 and TPT482 is IEC61000 ESD protected, which support ±12 kV IEC contact and ±15 kV IEC air discharge.

TPT482 Features

* Exceeds Requirements of Full Duplex EIA-485 Standard
* Hot Plug Circuitry - Tx and Rx Outputs Remain ThreeState During Power-up/Power-down
* Supply voltage: 3.0V ~ 5.5V
* Input Common-mode Range: -7V ~ +12 V
* Data Rate: 32Mbps
* Up to 256 Nodes on a Bus (1/8 unit load)

TPT482 Applications

* Home Appliance
* Motor Drives
* Industrial Control
* Grid Infrastructure
* Video Surveillance
* Communication Infrastructure Device Table Part TPT480 TPT482 Duplex Full Full Enable Yes Yes Data Rate 32Mbps 32Mbps Package SOP-8 DFN3X3-8 MSOP10 SOP-14 Simplified Schema

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPT482, TPT480. Please refer to the document for exact specifications by model.

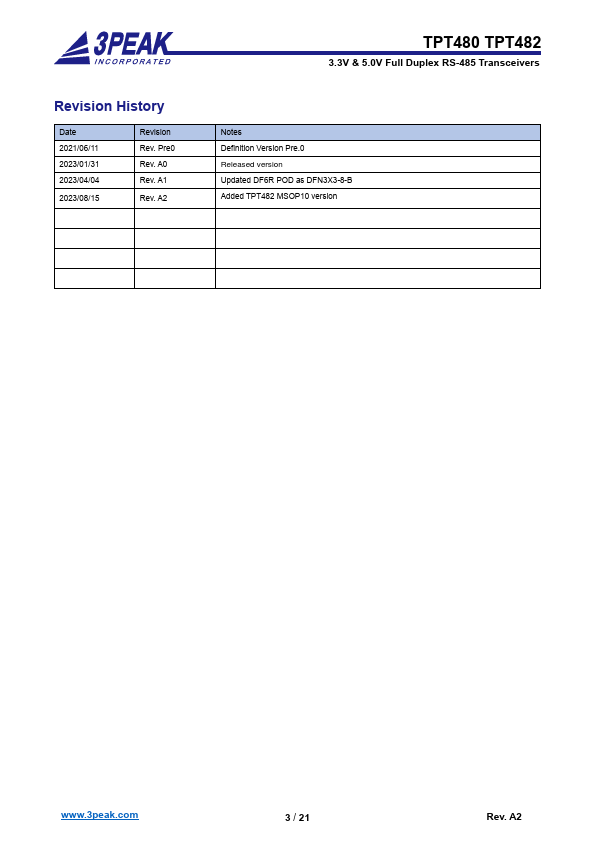

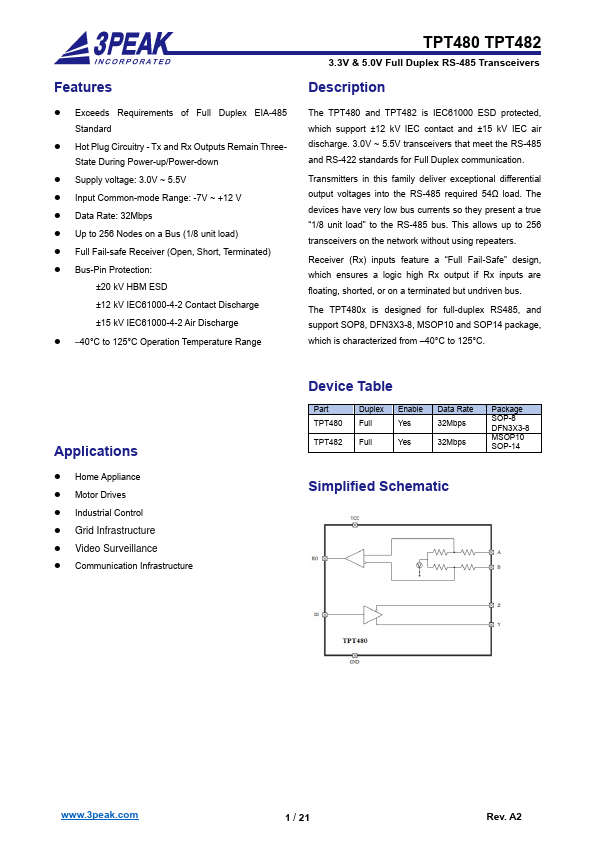

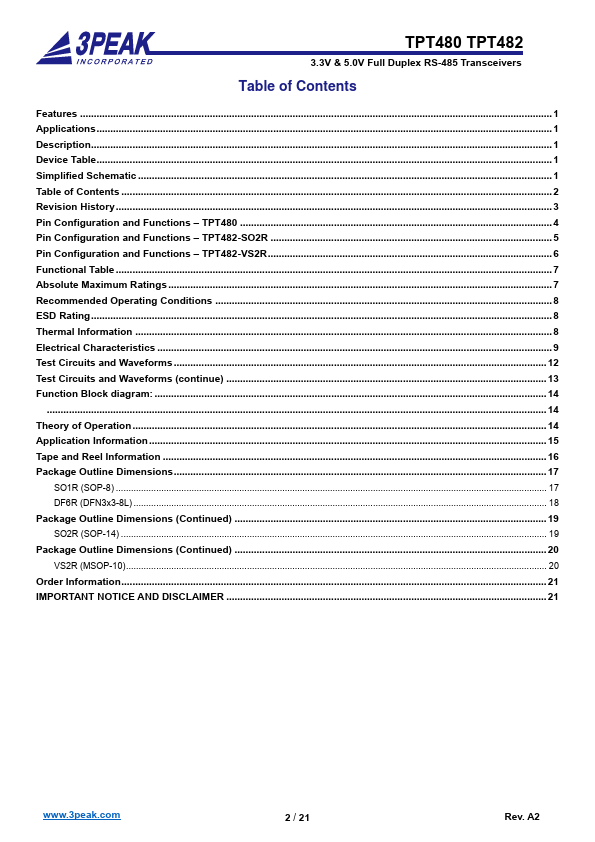

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPT482, TPT480
Manufacturer
3PEAK
File Size
1.45 MB
Datasheet
TPT480-3PEAK.pdf
Description
Full Duplex RS-485 Transceivers
Note
This datasheet PDF includes multiple part numbers: TPT482, TPT480.
Please refer to the document for exact specifications by model.
