TPT485E Datasheet - 3PEAK

RS-485 Transceiver

TPT485E Features

* Exceeds Requirements of EIA-485 Standard

* Data Rate: 500 kbps

* Support Failsafe function

* Low Power Consumption: < 1 µA Standby Supply Current

* Large Receiver Hysteresis: 60mV

* Up to 256 Nodes on a Bus (1/8 unit load)

* Wide Supply Voltage 4.5V to 5.5V

* SOP8 P

TPT485E General Description

The TPT485E is 4.5V~5.5V powered transceivers that meet the RS-485 and RS-422 standards for balanced communication. Driver outputs and receiver inputs are protected against ±18 kV ESD strikes without latch-up. Transmitters in this family deliver exceptional differential output voltages as 2.5V (min).

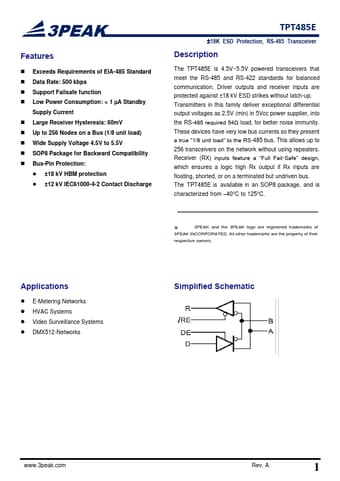

TPT485E Datasheet (752.62 KB)

TPT485E Datasheet Preview — Preview of TPT485E PDF

Datasheet Details

Part number:

TPT485E

Manufacturer:

3PEAK

File Size:

752.62 KB

Description:

Rs-485 transceiver.
