Part number:
HM2319D
Manufacturer:
H&M Semiconductor
File Size:
595.07 KB
Description:
P-channel enhancement mode power mosfet.
Datasheet Details

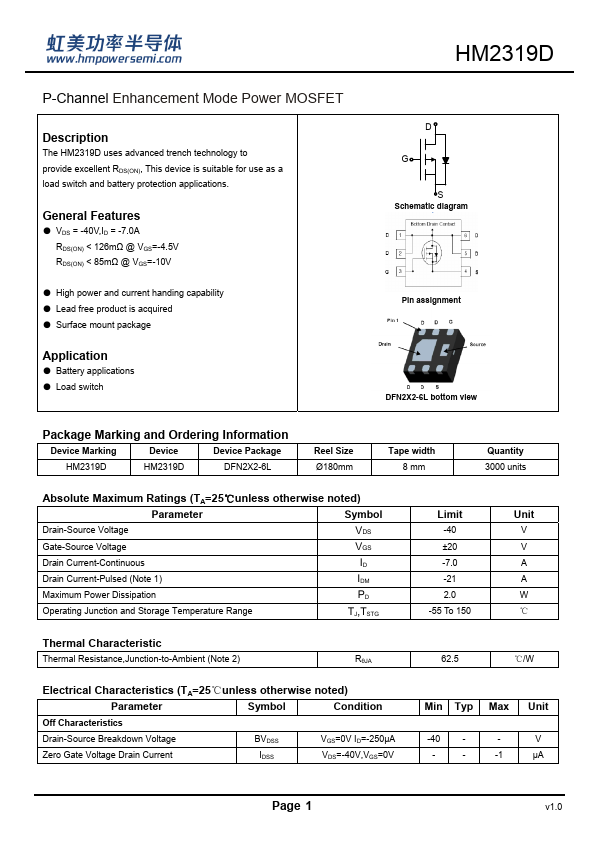

HM2319D Features
* VDS = -40V,ID = -7.0A RDS(ON) < 126mΩ @ VGS=-4.5V RDS(ON) < 85mΩ @ VGS=-10V
* High power and current handing capability
* Lead free product is acquired
* Surface mount package Application
* Battery applications
* Load switch D G S Schematic diagram Schematic diagram Pin as
Datasheet Details
HM2319D
H&M Semiconductor
595.07 KB
P-channel enhancement mode power mosfet.
