HM5N60 - 600V N-Channel MOSFET

Name: HM5N60
SKU: HM5N60-1048049

H&M Semiconductor

The HM5N60 by H&M Semiconductor is a 600V N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	HM5N60
Manufacturer	H&M Semiconductor
File Size	377.01 KB
Description	600V N-Channel MOSFET
Datasheet	HM5N60-HMSemiconductor.pdf

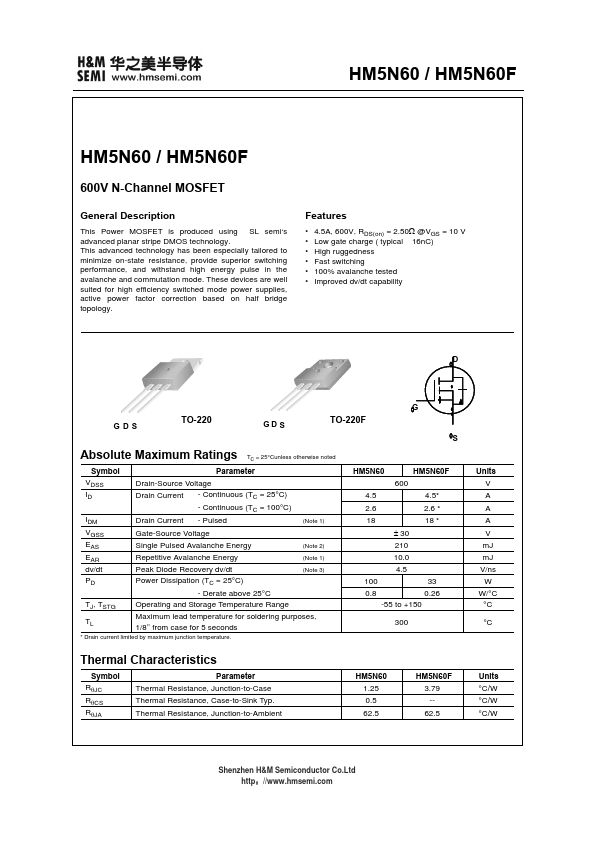

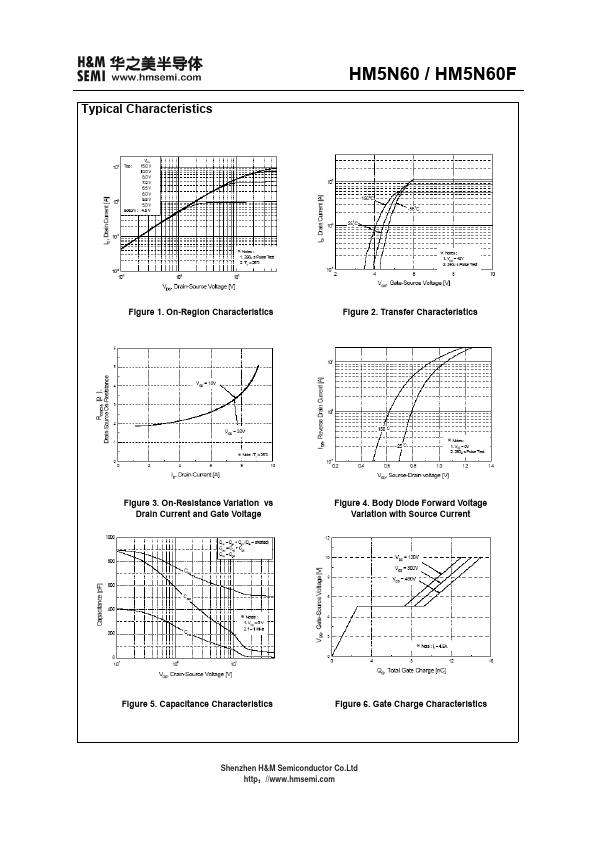

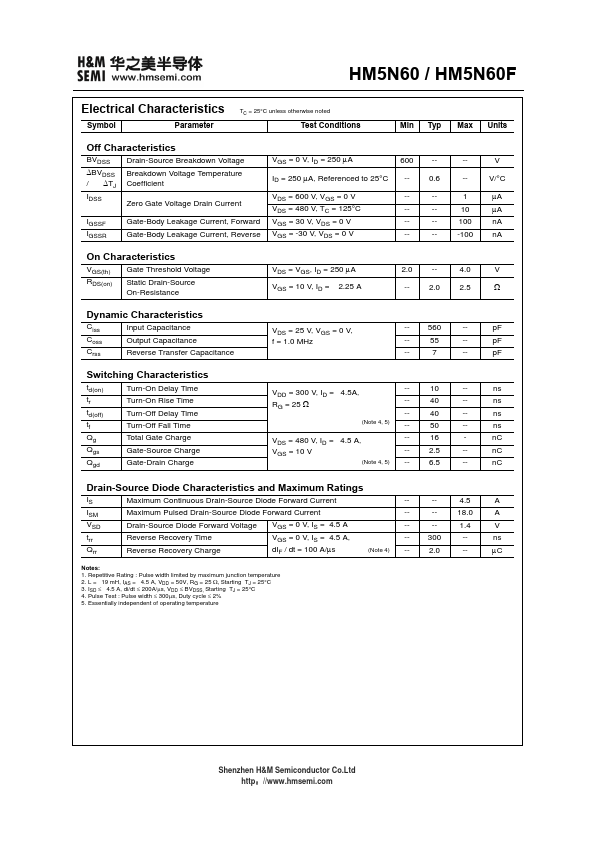

Additional preview pages of the HM5N60 datasheet.

This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology.

4.5A, 600V, RDS(on) = 2.50Ω @VGS = 10 V.
Low gate charge ( typical 16nC).
High ruggedness.
Fast switching.
100% avalanche tested.
Improved dv/dt capability {D.
GDS TO-220 GD S TO-220F ◀▲ {G.
{S Absolute Maximum Ratings TC = 25°Cunless otherwise noted Symbol Parameter VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) - Continuous (TC = 100°C) IDM Drain Current - Pulsed (Note 1) VGSS Ga.
