HD74LV393A Datasheet - Hitachi Semiconductor

HD74LV393A, Dual 4-bit Binary Counters

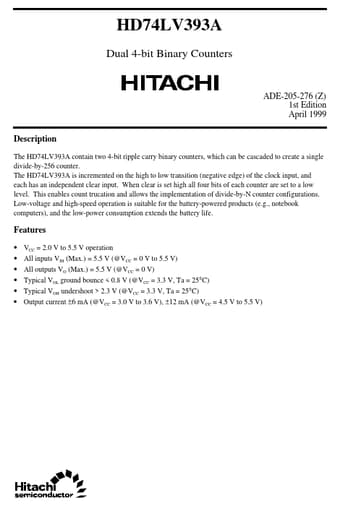

The HD74LV393A contain two 4-bit ripple carry binary counters, which can be cascaded to create a single divide-by-256 counter. The HD74LV393A is incremented on the high to low transition (negative edge) of the clock input, and each has an independent clear input. When clear is set high all four bits.

HD74LV393A_HitachiSemiconductor.pdf

HD74LV393A Datasheet Preview — Preview of HD74LV393A PDF

Datasheet Details

Part number:

HD74LV393A

Manufacturer:

Hitachi Semiconductor

File Size:

64.74 KB

Description:

Dual 4-bit Binary Counters

HD74LV393A Features

* VCC = 2.0 V to 5.5 V operation All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.5 V (@VCC = 0 V) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°
