HD74LV02A - Quad. 2-input NOR Gates

Datasheet Summary

Description

The HD74LV02A has four two-input NOR gates in a 14-pin package.

Low-voltage and high-speed operation is suitable for the battery-powered products (e.g., notebook computers), and the low-power consumption extends the battery life.

Features

  • VCC = 2.0 V to 5.5 V operation All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max. ) = 5.5 V (@VCC = 0 V) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C) Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V) Function Table Inputs A H X L Note: H: High level L: Low level X: Immaterial B X H L Output Y L L H HD74LV02A Pin Arra.

📥 Download Datasheet

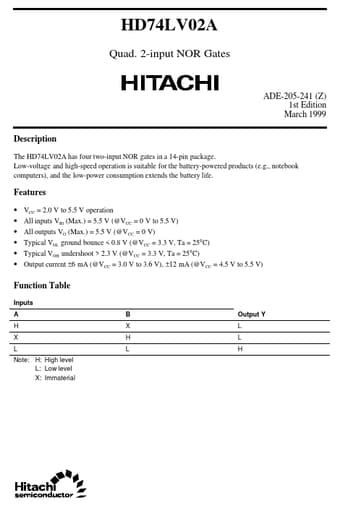

Datasheet preview – HD74LV02A

Datasheet Details

Part number HD74LV02A
Manufacturer Hitachi Semiconductor
File Size 52.73 KB
Description Quad. 2-input NOR Gates
Datasheet download datasheet HD74LV02A Datasheet
Additional preview pages of the HD74LV02A datasheet.

📁 Similar Datasheet

  • HD74LV02A - 2-input NOR Gates (Renesas)
  • HD74LV00A - 2-input NAND Gates (Renesas)
  • HD74LV04A - Hex Inverters (Renesas)
  • HD74LV05A - Hex Inverters (Renesas)
  • HD74LV06A - Hex Inverter Buffers / Drivers (Renesas)
  • HD74LV07A - Hex Buffers/Drivers (Renesas)
  • HD74LV08A - 2-input AND Gates (Renesas)
  • HD74LV10A - Triple 3-input Positive NAND Gates (Renesas)
  • HD74LV11A - Triple 3-input Positive AND Gates (Renesas)
  • HD74LV123A - Dual Retriggerable Monostable Multivibrators (Renesas)
Other Datasheets by Hitachi Semiconductor
  • HD74LV00A - Quad. 2-input NAND Gates
  • HD74LV04A - Hex Inverters
  • HD74LV05A - Hex Inverters with Open Drain Outputs
  • HD74LV06A - Hex Inverter Buffers / Drivers with Open Drain Outputs
  • HD74LV07A - Hex Buffers / Drivers with Open Drain Outputs
  • HD74LV08A - Quad. 2-input AND Gates
  • HD74LV10A - Triple 3-input Positive NAND Gates
  • HD74LV11A - Triple 3-input Positive AND Gates

Full PDF Text Transcription

Click to expand full text
HD74LV02A Quad. 2-input NOR Gates ADE-205-241 (Z) 1st Edition March 1999 Description The HD74LV02A has four two-input NOR gates in a 14-pin package. Low-voltage and high-speed operation is suitable for the battery-powered products (e.g., notebook computers), and the low-power consumption extends the battery life. Features • • • • • • VCC = 2.0 V to 5.5 V operation All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.5 V (@VCC = 0 V) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C) Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.
