HD74LV04A - Hex Inverters

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

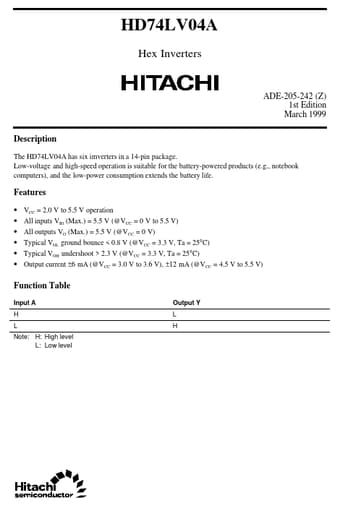

HD74LV04A Hex Inverters by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – HD74LV04A

Datasheet Details

Part number	HD74LV04A
Manufacturer	Hitachi Semiconductor
File Size	52.19 KB
Description	Hex Inverters
Datasheet	HD74LV04A Datasheet
Additional preview pages of the HD74LV04A datasheet.

Product details

Description

The HD74LV04A has six imverters in a 14-pin package.

Features

VCC = 2.0 V to 5.5 V operation All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max. ) = 5.5 V (@VCC = 0 V) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C) Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V) Function Table Input A H L Note: H: High level L: Low level Output Y L H HD74LV04A Pin Arrangement 1A 1 1Y 2A 2 3 14.
