HD74LV00A Datasheet, Gates, Hitachi Semiconductor

HD74LV00A Features

  • Gates
  • VCC = 2.0 V to 5.5 V operation All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.5 V (@VCC = 0 V)

PDF File Details

Part number:

HD74LV00A

Manufacturer:

Hitachi Semiconductor

File Size:

51.80kb

Download:

📄 Datasheet

Description:

Quad. 2-input nand gates. The HD74LV00A has four two-input NAND gates in a 14-pin package. Low-voltage and high-speed operation is suitable for the battery-pow

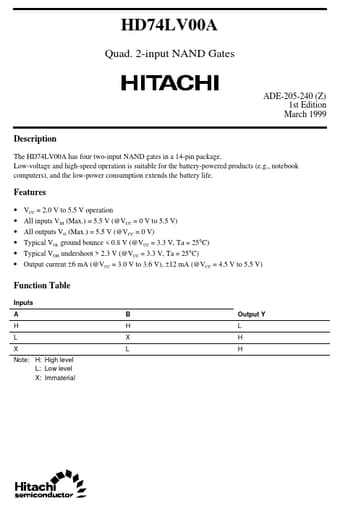

Datasheet Preview: HD74LV00A 📥 Download PDF (51.80kb)
