HD74LV06A Datasheet, Outputs, Hitachi Semiconductor

HD74LV06A Features

  • Outputs
  • VCC = 2.0 V to 5.5 V operation All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.5 V (@VCC = 0 V)

PDF File Details

Part number:

HD74LV06A

Manufacturer:

Hitachi Semiconductor

File Size:

46.75kb

Download:

📄 Datasheet

Description:

Hex inverter buffers / drivers with open drain outputs. The HD74LV06A has six inverter buffers / drivers with open drain outputs in a 14-pin package. Low-voltage and high-speed operation is

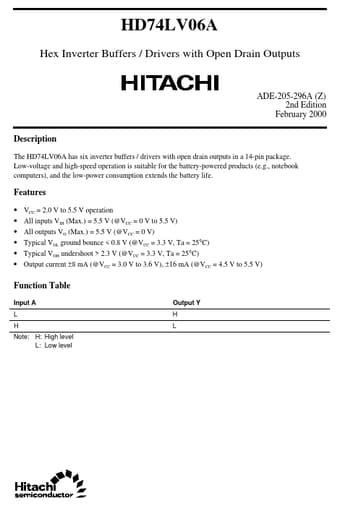

Datasheet Preview: HD74LV06A 📥 Download PDF (46.75kb)
