2SB1121 - PNP Epitaxial Planar Silicon Transistors

Features

  • Adoption of FBET, MBIT processes. Low collector-to-emitter saturation voltage. Large current capacity and wide ASO. Fast switching speed. Very small size making it easy to provide highdensity, small-sized hybrid IC’ s. Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current (pulse) Collector dissipation Jumction temperature Storage temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Rating -30 -25 -6 -2.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SB1121 - PNP Transistor (Sanyo Semicon Device)
  • 2SB1121 - Bipolar Transistor (ON Semiconductor)
  • 2SB1120 - PNP Transistor (Sanyo Semicon Device)
  • 2SB1122 - PNP Transistor (Sanyo Semicon Device)
  • 2SB1122 - Bipolar Transistor (ON Semiconductor)
  • 2SB1123 - PNP Transistor (Sanyo Semicon Device)
  • 2SB1123 - Bipolar Transistor (ON Semiconductor)
  • 2SB1124 - PNP Transistor (Sanyo Semicon Device)
  • 2SB1124 - Bipolar Transistor (ON Semiconductor)
  • 2SB1125 - PNP Transistor (Sanyo Semicon Device)
Other Datasheets by Kexin

Full PDF Text Transcription

Click to expand full text

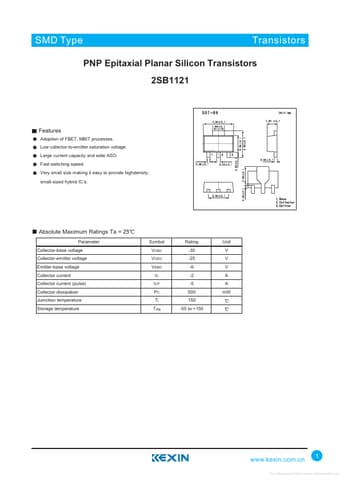

SMD Type Transistors PNP Epitaxial Planar Silicon Transistors 2SB1121 Features Adoption of FBET, MBIT processes. Low collector-to-emitter saturation voltage. Large current capacity and wide ASO. Fast switching speed. Very small size making it easy to provide highdensity, small-sized hybrid IC’ s. Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current (pulse) Collector dissipation Jumction temperature Storage temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Rating -30 -25 -6 -2 -5 500 150 -55 to +150 Unit V V V A A mW www.kexin.com.cn 1 Free Datasheet http://www.datasheet4u.
