SGM42500 Datasheet - SG Micro

SGM42500, 3.6A Brushed DC Motor Driver

The SGM42500 device is a brushed DC motor driver. This device integrates four N-MOSFETs, which can supply up to 3.6A peak current at 40V voltage. The SGM42500 supports IN1/IN2 PWM interface. The PWM signal can be implemented on the input interface to adjust motor speed. Customer can adjust PWM curre.

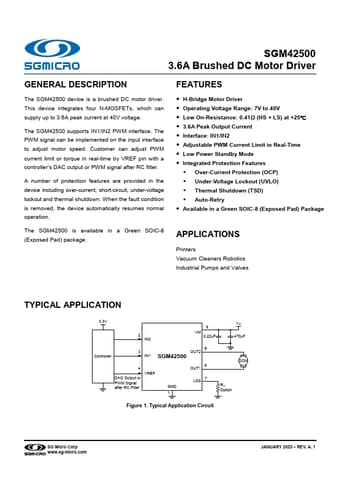

 Datasheet Preview Page 1

SGM42500-SGMicro.pdf

Preview of SGM42500 PDF

Datasheet Details

Part number:

SGM42500

Manufacturer:

SG Micro

File Size:

537.27 KB

Description:

3.6A Brushed DC Motor Driver

SGM42500 Features

* are provided in the device including over-current, short-circuit, under-voltage lockout and thermal shutdown. When the fault condition is removed, the device automatically resumes normal operation. The SGM42500 is available in a Green SOIC-8 (Exposed Pad) package. FEATURES

* H-Bridge Motor Driv
