SMC4207PA, Single P-Channel MOSFET

SMC4207PA is the P-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior, fast switching performance.These devices are well suited for high efficiency fast swit.

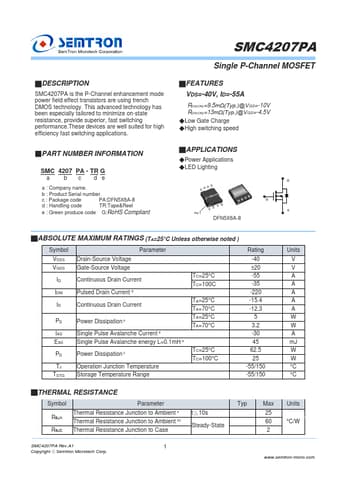

Datasheet Preview Page 1

SMC4207PA-Semtron.pdf

SMC4207PA Datasheet Preview — Preview of SMC4207PA PDF

SMC4207PA Datasheet Preview Page 2

SMC4207PA Datasheet Preview Page 3

Datasheet Details

Part number:

SMC4207PA

Manufacturer:

Semtron

File Size:

311.44 KB

Description:

Single P-Channel MOSFET

SMC4207PA Features

* VDS=-40V, ID=-55A RDS(ON)=9.5mΩ(Typ.)@VGS=-10V RDS(ON)=13mΩ(Typ.)@VGS=-4.5V

* Low Gate Charge

* High switching speed

* APPLICATIONS

* Power Applications

* LED Lighting DDDD SS SG Pin 1 DFN5X6A-8 D G S

* ABSOLUTE MAXIMUM RATINGS (TA=25°C Unless otherwise noted ) Symbol VDSS VGSS
