2SD664 NPN Transistor

2SD664 Description

SILICON NPN TRIPLE DIFFUSED TYPE (DARLINGTON POWER) HIGH POWER SWITCHING APPLICATIONS..

2SD664 Features

* High DC Current Gain : hFE=2000(Min. )(VCE=3V, I C=3A)
* Low Saturation Voltage
* V C E( S at) =1 - 5v (Max. )(I c=3A)
* Monolithic Cnstruction with Built-in Base- Emitter Shunt Resistor. Unit in mm 015.7MAX MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Vo

📥 Download Datasheet

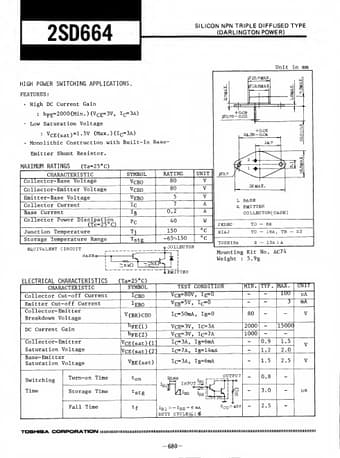

Preview of 2SD664 PDF
datasheet Preview Page 2 datasheet Preview Page 3
