HN1D05FE - Silicon Epitaxial Planar Type Diode

Features

  • (1) Small package (2) Low reverse current: IR(2) = 0.1 µA (max) (3) Low forward voltage: VF(2) = 1.0 V (typ. ) (4) Fast reverse recovery time: trr = 0.5 µs (typ. ) (5) Small total capacitance: Ct = 4.3 pF (typ. ) 3. Packaging and Internal Circuit ES6 HN1D05FE 1: Anode1 2: N. C. 3: Cathode2 4: Anode2 5: N. C. 6: Cathode1 ©2022-2023 1 Toshiba Electronic Devices & Storage Corporation Start of commercial production 2023-10 2023-10-27 Rev.1.0 HN1D05FE 4. Absolute Maximum Ratings (Note) (Unless othe.

📥 Download Datasheet

Datasheet Details

Part number HN1D05FE
Manufacturer Toshiba
File Size 213.32 KB
Description Silicon Epitaxial Planar Type Diode
Datasheet download datasheet HN1D05FE Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HN16012CG 10/100 Base-T Single Port Transformer Mingtek
HN16015CG 10/100 Base-T Single Port Transformer Mingtek
HN16016CG 10/100 Base-T Single Port Transformer Mingtek
HN16017CG 10/100 Base-T Single Port Transformer Mingtek
HN16018CG 10/100 Base-T Single Port Transformer Mingtek

Other Datasheets by Toshiba

Part Number Description
HN1D01F Silicon Epitaxial Planar Type Diode
HN1D01FE Silicon Epitaxial Planar Type Diode
HN1D01FU Silicon Epitaxial Planar Type Diode
HN1D02F Silicon Epitaxial Planar Type Diode
HN1D02FE Silicon Epitaxial Planar Type Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

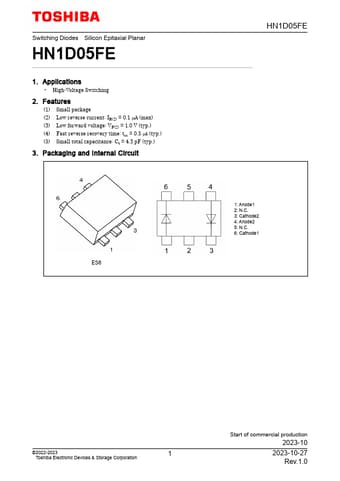

Switching Diodes Silicon Epitaxial Planar HN1D05FE 1. Applications • High-Voltage Switching 2. Features (1) Small package (2) Low reverse current: IR(2) = 0.1 µA (max) (3) Low forward voltage: VF(2) = 1.0 V (typ.) (4) Fast reverse recovery time: trr = 0.5 µs (typ.) (5) Small total capacitance: Ct = 4.3 pF (typ.) 3. Packaging and Internal Circuit ES6 HN1D05FE 1: Anode1 2: N.C. 3: Cathode2 4: Anode2 5: N.C. 6: Cathode1 ©2022-2023 1 Toshiba Electronic Devices & Storage Corporation Start of commercial production 2023-10 2023-10-27 Rev.1.0 HN1D05FE 4.
