PTB48500, 48-V INPUT ISOLATED DC/DC CONVERTER

The PTB4850x power modules are a dual-output isolated DC/DC converter, designed to provide the logic supply voltages for AC-7 based xDSL applications. The PTB48500 is rated for 13 A of total output current, making it suitable for 32-channel xDSL applications. The PTB48501 and PTB48502 provide output.

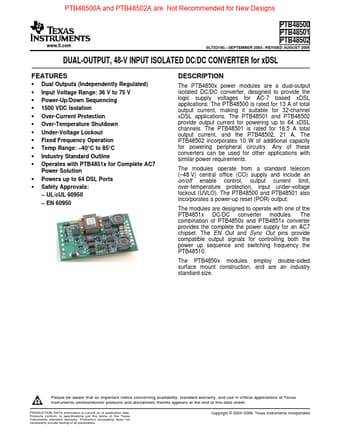

Datasheet Preview Page 1

PTB48500-etcTI.pdf

PTB48500 Datasheet Preview — Preview of PTB48500 PDF

PTB48500 Datasheet Preview Page 2

PTB48500 Datasheet Preview Page 3

Datasheet Details

Part number:

PTB48500

Manufacturer:

Texas Instruments ↗

File Size:

505.43 KB

Description:

48-V INPUT ISOLATED DC/DC CONVERTER

PTB48500 Features

* Dual Outputs (Independently Regulated)

* Input Voltage Range: 36 V to 75 V

* Power-Up/Down Sequencing

* 1500 VDC Isolation

* Over-Current Protection

* Over-Temperature Shutdown

* Under-Voltage Lockout

* Fixed Frequency Operation
