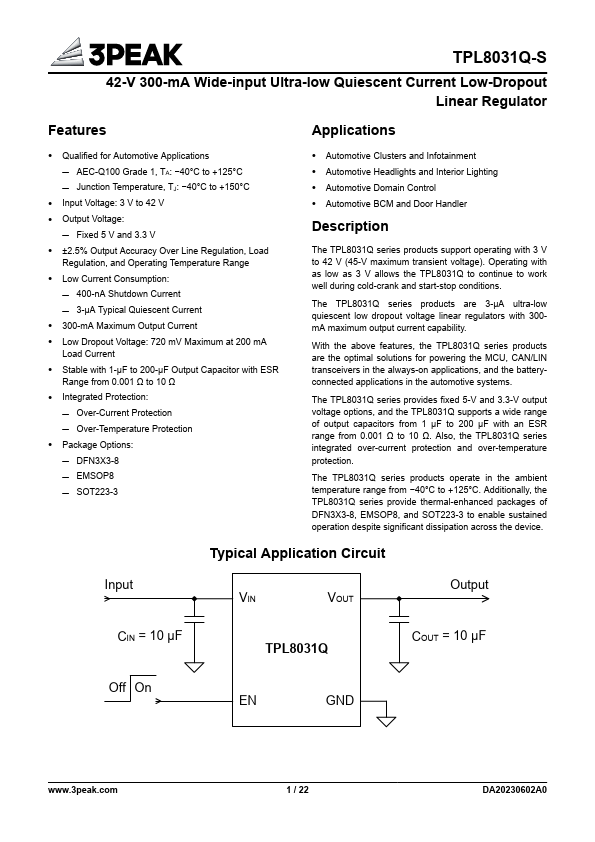

TPL8031Q, TPL8031Q-S Datasheet - 3PEAK

TPL8031Q 42-V 300-mA Wide-input Ultra-low Quiescent Current Low-Dropout Linear Regulator

The TPL8031Q series products support operating with 3 V to 42 V (45-V maximum transient voltage). Operating with as low as 3 V allows the TPL8031Q to continue to work well during cold-crank and start-stop conditions. The TPL8031Q series products are 3-μA ultra-low quiescent low dropout voltage linea.

TPL8031Q Features

* Qualified for Automotive Applications

* AEC-Q100 Grade 1, TA:

* 40°C to +125°C

* Junction Temperature, TJ:

* 40°C to +150°C

* Input Voltage: 3 V to 42 V

* Output Voltage:

* Fixed 5 V and 3.3 V

* ±2.5% Output Accuracy Over Line R

TPL8031Q-S-3PEAK.pdf

TPL8031Q Datasheet Preview — This datasheet PDF includes multiple part numbers: TPL8031Q, TPL8031Q-S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TPL8031Q, TPL8031Q-S

Manufacturer:

3PEAK

File Size:

1.84 MB

Description:

42-v 300-ma wide-input ultra-low quiescent current low-dropout linear regulator.

Note:

This datasheet PDF includes multiple part numbers: TPL8031Q, TPL8031Q-S.
Please refer to the document for exact specifications by model.
