TPL8032Q 20-V/300-mA Wide-input High-PSRR Ultra-low Noise LDO Regulator

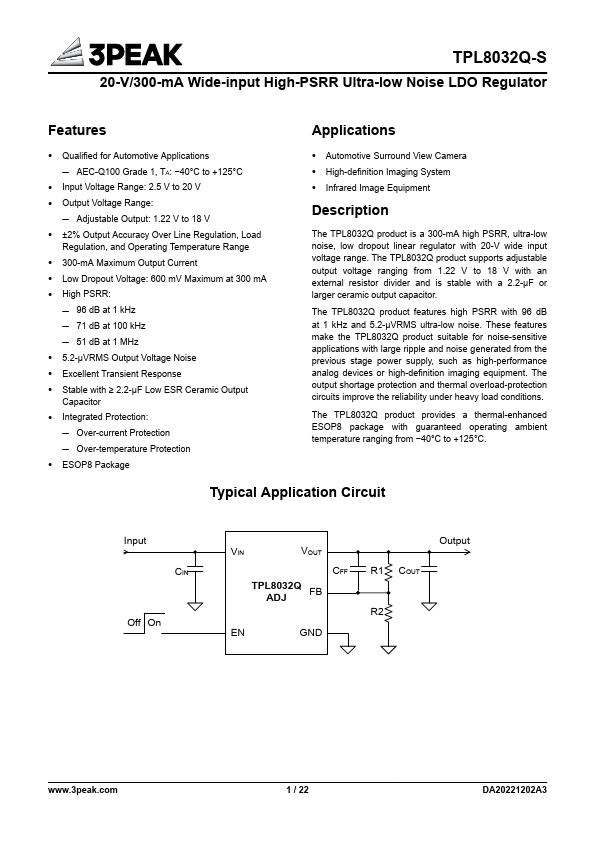

The TPL8032Q product is a 300-mA high PSRR, ultra-low noise, low dropout linear regulator with 20-V wide input voltage range. The TPL8032Q product supports adjustable output voltage ranging from 1.22 V to 18 V with an external resistor divider and is stable with a 2.2-μF or larger ceramic output cap.

TPL8032Q Features

* Applications

* Qualified for Automotive Applications

* AEC-Q100 Grade 1, TA:

* 40°C to +125°C

* Input Voltage Range: 2.5 V to 20 V

* Output Voltage Range:

* Adjustable Output: 1.22 V to 18 V

* ±2% Output Accuracy Over Line Regulation, Load Reg

TPL8032Q-3PEAK.pdf

TPL8032Q Datasheet Preview — Preview of TPL8032Q PDF

Datasheet Details

Part number:

TPL8032Q

Manufacturer:

3PEAK

File Size:

2.56 MB

Description:

20-v/300-ma wide-input high-psrr ultra-low noise ldo regulator.
