TPL8151 Datasheet - 3PEAK

TPL8151 1.5-A Wide-Input High-Current Low-Dropout Linear Regulator

The TPL8151 is a 1.5-A high-current, low-dropout linear regulator with up to 29-V wide input voltage range. The TPL8151 supports adjustable output voltage ranging from 1.25 V with an external resistor divider and is stable with a 10-μF to 100-μF tantalum output capacitor. The TPL8151 is compatible w.

TPL8151 Features

* Applications

* Input Voltage Range: 2.75 V to 29 V

* Output Voltage Range: Adjustable from 1.25 V to 25 V

* ±2% Output Accuracy over Line Regulation, Load Regulation, and Operating Temperature Range

* 1.5-A Maximum Output Current

* Dropout Voltage: 1.2 V Typ

TPL8151 Datasheet (844.80 KB)

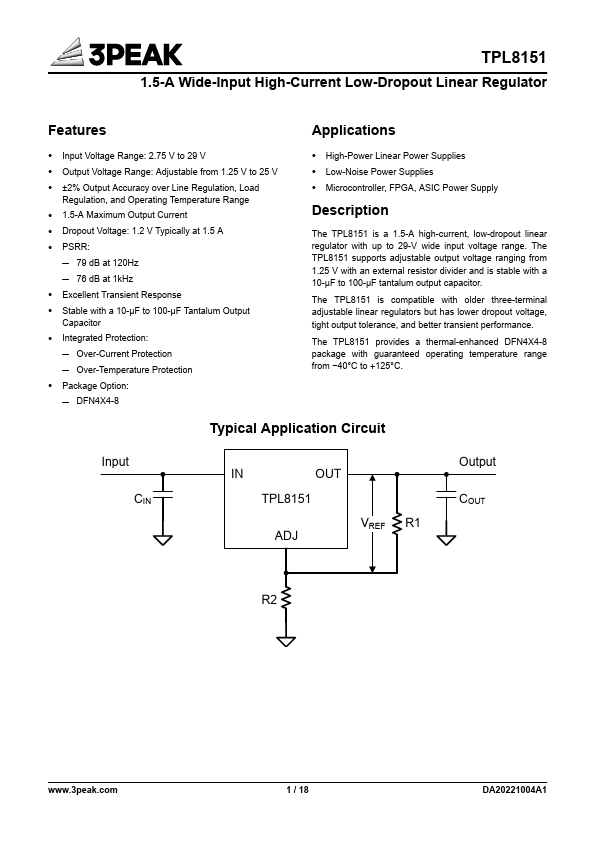

Preview of TPL8151 PDF

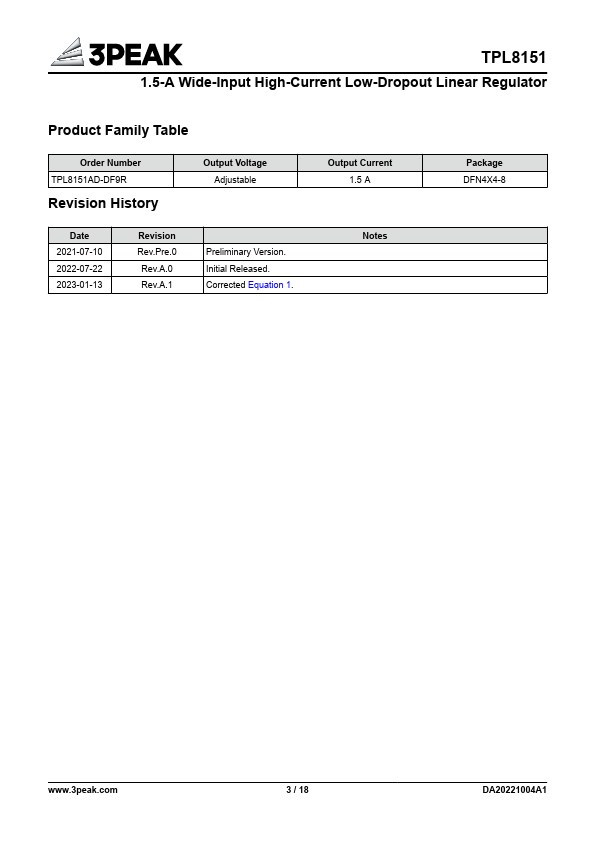

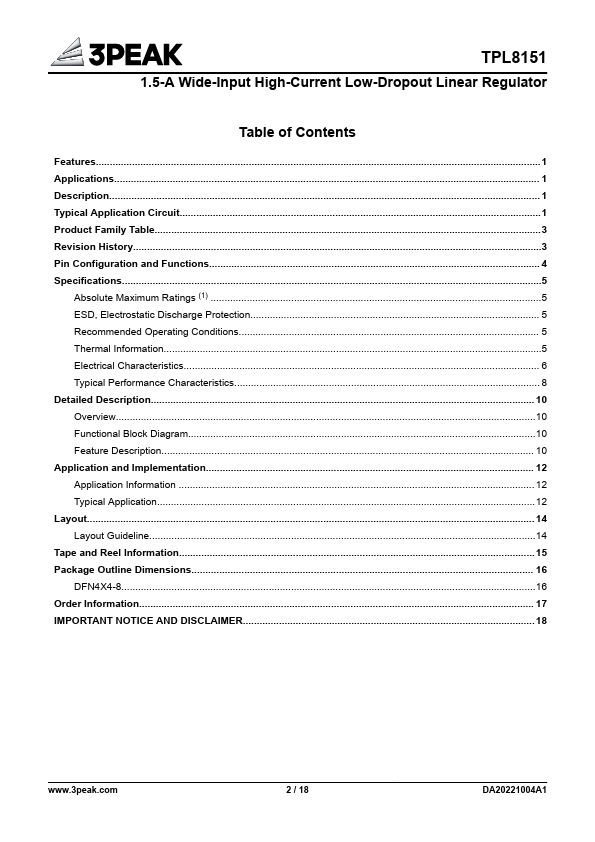

TPL8151 Datasheet Preview Page 2 TPL8151 Datasheet Preview Page 3

Datasheet Details

Part number:

TPL8151

Manufacturer:

3PEAK

File Size:

844.80 KB

Description:

1.5-a wide-input high-current low-dropout linear regulator.
