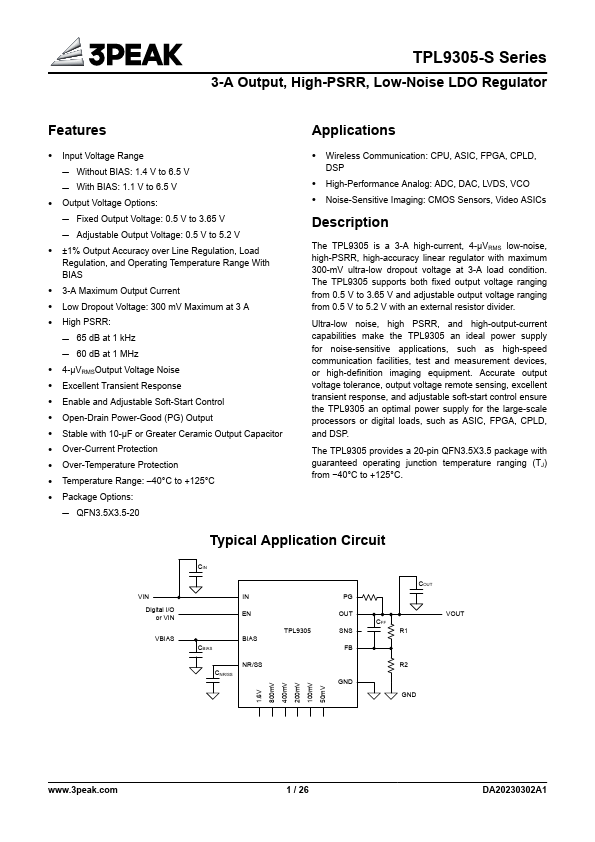

TPL9305 Low-Noise LDO Regulator

The TPL9305 is a 3-A high-current, 4-μVRMS low-noise, high-PSRR, high-accuracy linear regulator with maximum 300-mV ultra-low dropout voltage at 3-A load condition. The TPL9305 supports both fixed output voltage ranging from 0.5 V to 3.65 V and adjustable output voltage ranging from 0.5 V to 5.2 V w.

TPL9305 Features

* Applications

* Input Voltage Range

* Without BIAS: 1.4 V to 6.5 V

* With BIAS: 1.1 V to 6.5 V

* Output Voltage Options:

* Fixed Output Voltage: 0.5 V to 3.65 V

* Adjustable Output Voltage: 0.5 V to 5.2 V

* ±1% Output Accuracy over Line Regula

TPL9305 Datasheet (1.35 MB)

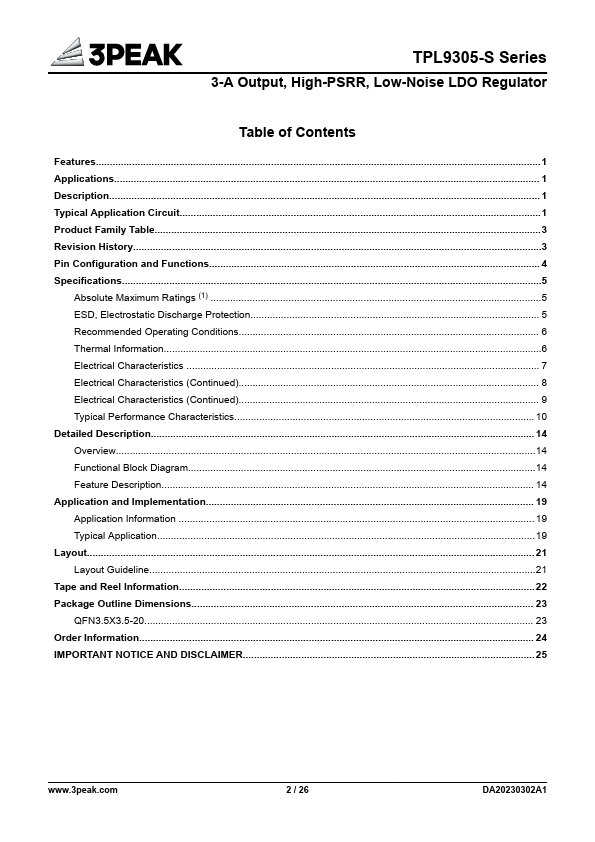

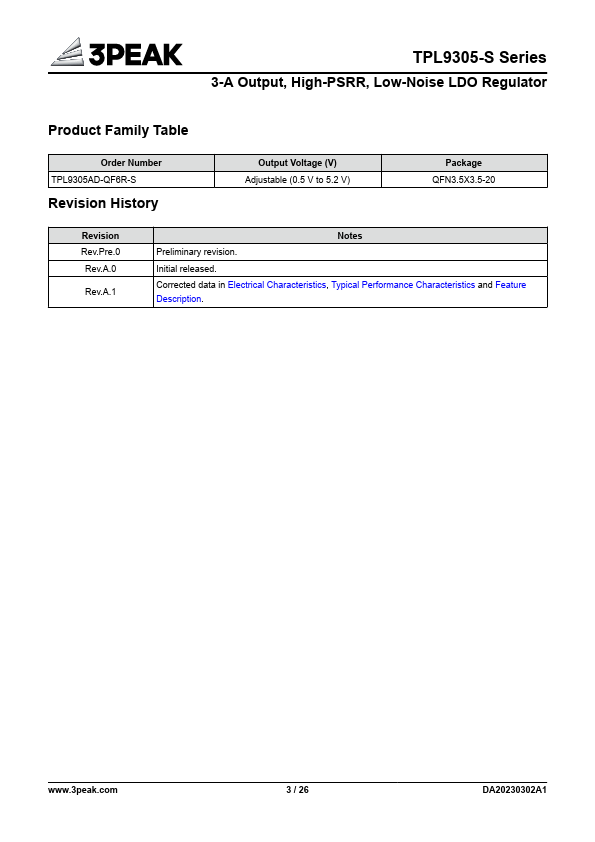

TPL9305 Datasheet Preview — Preview of TPL9305 PDF

Datasheet Details

Part number:

TPL9305

Manufacturer:

3PEAK

File Size:

1.35 MB

Description:

Low-noise ldo regulator.
