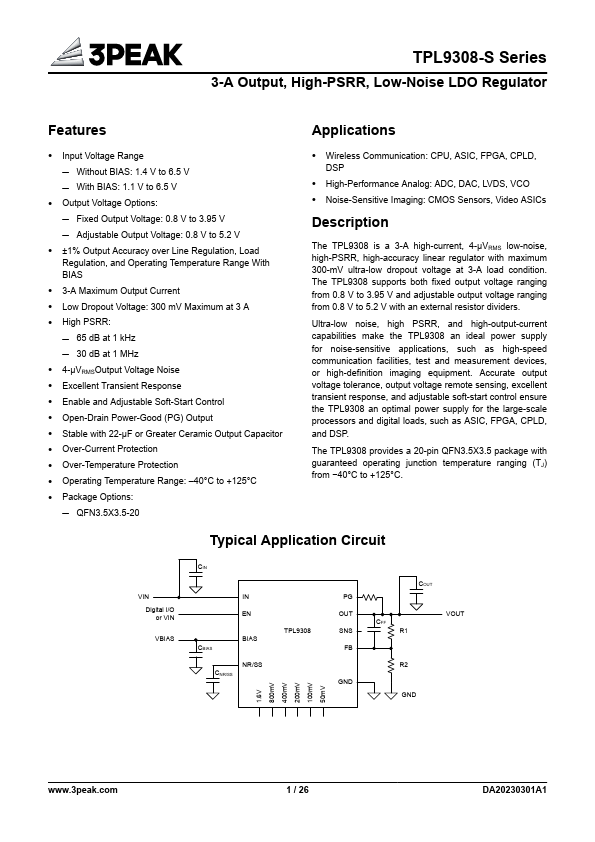

TPL9308-S Low-Noise LDO Regulator

The TPL9308 is a 3-A high-current, 4-μVRMS low-noise, high-PSRR, high-accuracy linear regulator with maximum 300-mV ultra-low dropout voltage at 3-A load condition. The TPL9308 supports both fixed output voltage ranging from 0.8 V to 3.95 V and adjustable output voltage ranging from 0.8 V to 5.2 V w.

TPL9308-S Features

* Applications

* Input Voltage Range

* Without BIAS: 1.4 V to 6.5 V

* With BIAS: 1.1 V to 6.5 V

* Output Voltage Options:

* Fixed Output Voltage: 0.8 V to 3.95 V

* Adjustable Output Voltage: 0.8 V to 5.2 V

* ±1% Output Accuracy over Line Regula

TPL9308-3PEAK.pdf

TPL9308-S Datasheet Preview — This datasheet PDF includes multiple part numbers: TPL9308-S, TPL9308. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TPL9308-S, TPL9308

Manufacturer:

3PEAK

File Size:

1.38 MB

Description:

Low-noise ldo regulator.

Note:

This datasheet PDF includes multiple part numbers: TPL9308-S, TPL9308.
Please refer to the document for exact specifications by model.
