TPT9H111 Multipoint-LVDS Line Driver and Receiver

📥 Download Datasheet Datasheet Preview Page 1

Description

.
The TPT9H111 is a 3.

📥 Download Datasheet

Preview of TPT9H111 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
TPT9H111
Manufacturer
3PEAK
File Size
0.98 MB
Datasheet
TPT9H111-3PEAK.pdf
Description
Multipoint-LVDS Line Driver and Receiver

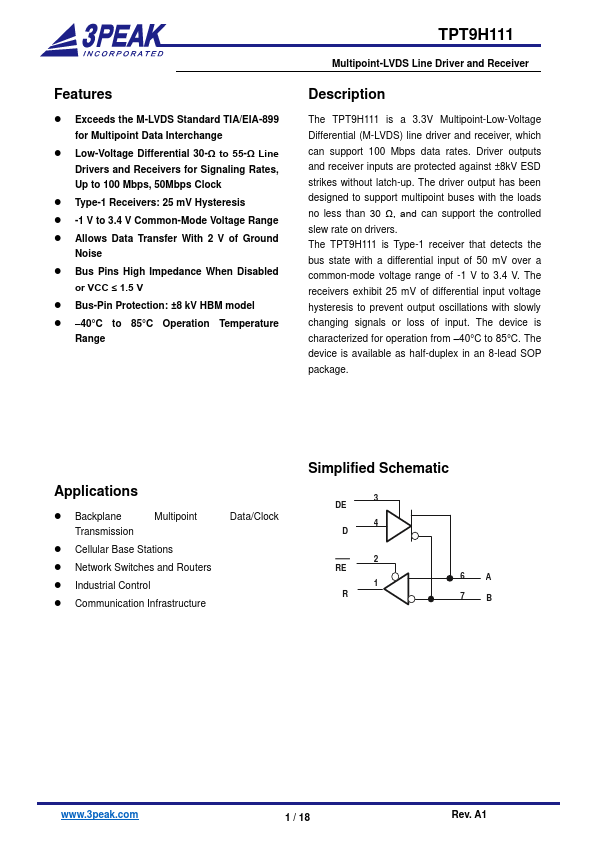

Features

* Exceeds the M-LVDS Standard TIA/EIA-899 for Multipoint Data Interchange
* Low-Voltage Differential 30-Ω to 55-Ω Line Drivers and Receivers for Signaling Rates, Up to 100 Mbps, 50Mbps Clock
* Type-1 Receivers: 25 mV Hysteresis
* -1 V to 3.4 V Common-Mode Voltage Range
* Allows D

Applications

* Backplane Multipoint Transmission
* Cellular Base Stations
* Network Switches and Routers
* Industrial Control
* Communication Infrastructure Data/Clock Simplified Schematic 3 DE 4 D 2 RE 1 R 6 A 7 B www.3peak. com 1 / 18 Rev. A1 TPT9H111 Multipoint-LVDS Line
