TPT9L484 Multipoint-LVDS Line Driver and Receiver

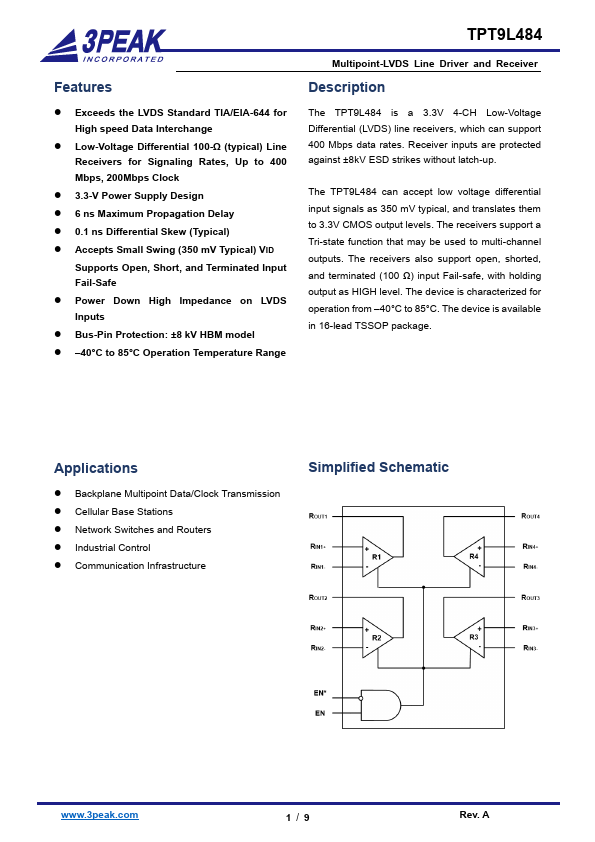

📥 Download Datasheet Datasheet Preview Page 1

Description

TPT9L484 .
The TPT9L484 is a 3.

📥 Download Datasheet

Preview of TPT9L484 PDF

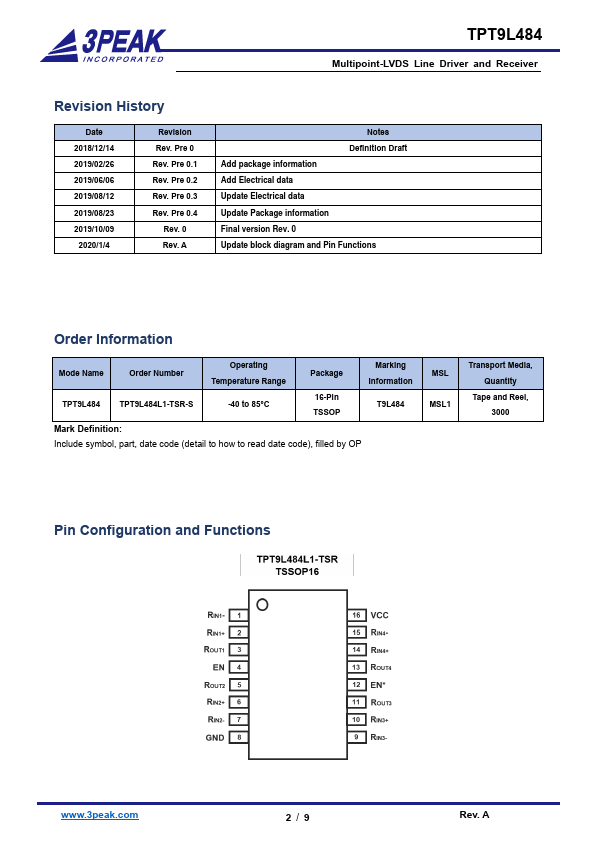

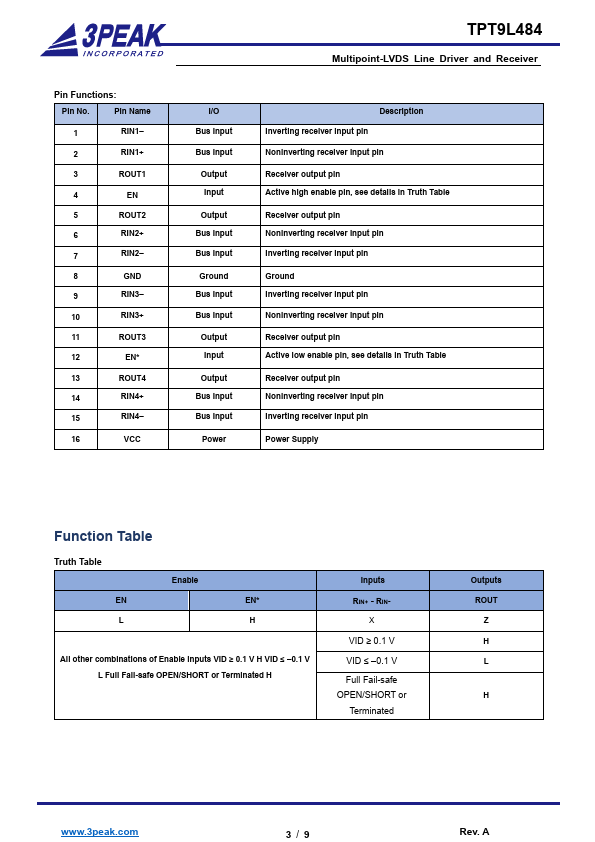

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
TPT9L484
Manufacturer
3PEAK
File Size
419.75 KB
Datasheet
TPT9L484-3PEAK.pdf
Description
Multipoint-LVDS Line Driver and Receiver

Features

* Exceeds the LVDS Standard TIA/EIA-644 for High speed Data Interchange
* Low-Voltage Differential 100-Ω (typical) Line Receivers for Signaling Rates, Up to 400 Mbps, 200Mbps Clock
* 3.3-V Power Supply Design
* 6 ns Maximum Propagation Delay
* 0.1 ns Differential Skew (Typical)

Applications

* Backplane Multipoint Data/Clock Transmission
* Cellular Base Stations
* Network Switches and Routers
* Industrial Control
* Communication Infrastructure Simplified Schematic www.3peak. com 1/9 Rev. A TPT9L484 Multipoint-LVDS Line Driver and Receiver Revision History Date
