TPT9H221 Datasheet - 3PEAK

TPT9H221 Multipoint-LVDS Line Driver and Receiver

The TPT9H221 is a 3.3V Multipoint-Low-Voltage Differential (M-LVDS) line driver and receiver, which can operate at signaling rates up to 200 Mbps. Driver outputs and receiver inputs are protected against ±8kV ESD strikes without latch-up. The driver output has been designed to support multipoint bus.

TPT9H221 Features

* Exceeds the M-LVDS Standard TIA/EIA-899 for Multipoint Data Interchange

* Low-Voltage Differential 30-Ω to 55-Ω Line Drivers and Receivers for Signaling Rates, Up to 200 Mbps

* Type-2 Receivers Provide an Offset (100 mV) Threshold to Detect Open-Circuit and IdleBus

* Conditions

TPT9H221 Datasheet (1.10 MB)

Preview of TPT9H221 PDF

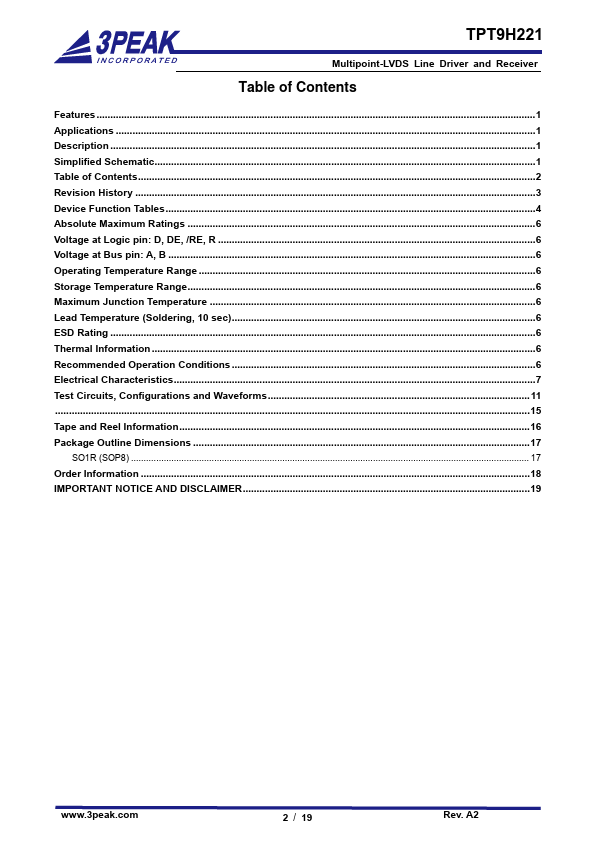

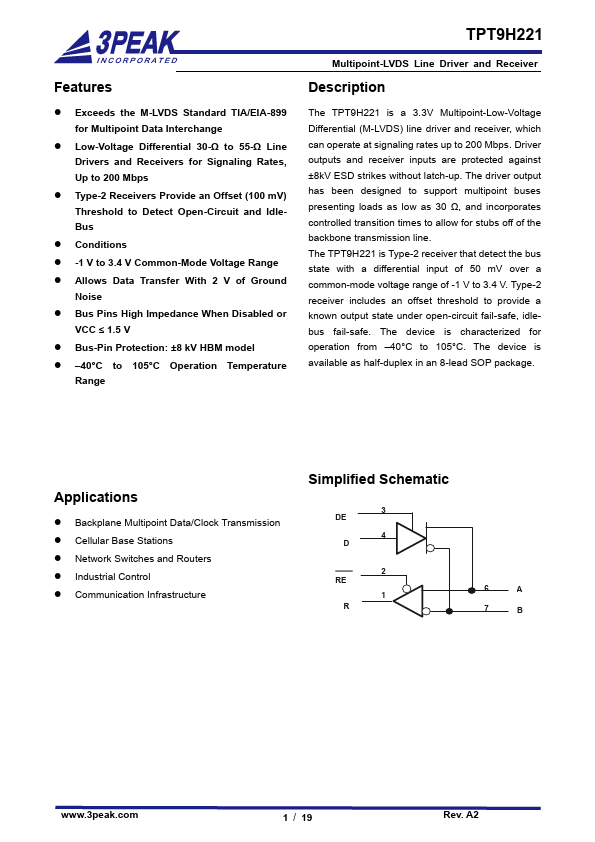

TPT9H221 Datasheet Preview Page 2 TPT9H221 Datasheet Preview Page 3

Datasheet Details

Part number:

TPT9H221

Manufacturer:

3PEAK

File Size:

1.10 MB

Description:

Multipoint-lvds line driver and receiver.
