AK591024AG - 1048576 Word x 9 Bit CMOS Dynamic Random Access Memory

Product Overview

Part number	AK591024AG
Manufacturer	ACCUTEK
File Size	161.35 KB
Description	1048576 Word x 9 Bit CMOS Dynamic Random Access Memory
Datasheet	AK591024AG Datasheet
Note	This datasheet PDF includes multiple part numbers: AK591024AG, AK591024AS. Please refer to the document for exact specifications by model.

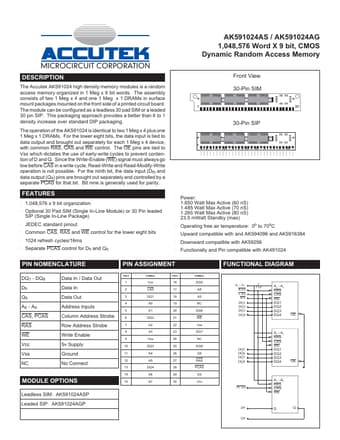

Additional preview pages of the AK591024AG datasheet.

The Accutek AK591024 high density memory modules is a random access memory organized in 1 Meg x 9 bit words.

1,048,576 x 9 bit organization.
Optional 30 Pad SIM (Single In-Line Module) or 30 Pin leaded SIP (Single In-Line Package).
JEDEC standard pinout.
Common CAS, RAS and WE control for the lower eight bits.
1024 refresh cycles/16ms.
Separate PCAS control for D9 and Q9.
Power: 1.650 Watt Max Active (60 nS) 1.485 Watt Max Active (70 nS) 1.265 Watt Max Active (80 nS) 23.5 mWatt Standby (max).
Operating free air temperature: 0o to 70oC.
Upward compatible wi.
