AK5916384G, AK5916384S Datasheet - ACCUTEK

AK5916384G - 16777216 Word by 9 Bit CMOS Dynamic Random Access Memory

The Accutek AK5916384S high density memory module is a CMOS random access memory organized in 16 Meg x 9 bit words.

The assembly consists of nine 16 Meg x 1 DRAMs in plastic SOJ packages mounted on the front side of a printed circuit board in 30 pad SIM (leadless) or 30 pin SIP (leaded) configuratio

AK5916384G Features

* 16,777,216 x 9 bit organization

* Optional 30 Pad leadless SIM (Single In-Line Module) or 30 Pin leaded SIP (Single In-Line Package)

* JEDEC standard pinout

* Common CAS and RAS control for the lower eight bits

* Separate PCAS control for D9 and Q9

* CAS-before-RAS refresh

AK5916384S-ACCUTEK.pdf

This datasheet PDF includes multiple part numbers: AK5916384G, AK5916384S. Please refer to the document for exact specifications by model.

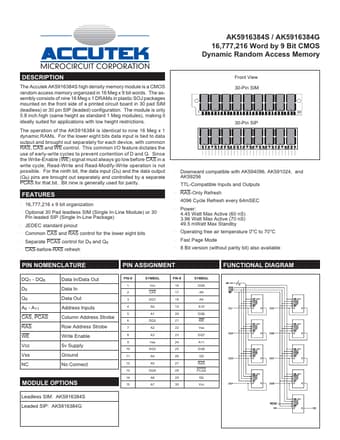

AK5916384G Datasheet Preview Page 2

Datasheet Details

Part number:

AK5916384G, AK5916384S

Manufacturer:

ACCUTEK

File Size:

155.65 KB

Description:

16777216 word by 9 bit cmos dynamic random access memory.

Note:

This datasheet PDF includes multiple part numbers: AK5916384G, AK5916384S.
Please refer to the document for exact specifications by model.
