AK594096AG, AK594096AS Datasheet - ACCUTEK

AK594096AG - 4194304 Word x 9 Bit CMOS Dynamic Random Access Memory

The Accutek AK594096A high density memory module is a CMOS random access memory organized in 4 Meg x 9 bit words. The assembly consists of nine standard 4 Meg x 1 DRAMs in plastic leaded chip carriers (SOJ) mounted on the front side of a printed circuit board. The module can be configured as a leadl.

AK594096AG Features

* 4,194,304 x 9 bit organization

* Optional 30 Pad leadless SIM (Single In-Line Module) or 30 Pin leaded SIP (Single In-Line Package)

* JEDEC standard pinout

* Common CAS and RAS control for the lower eight bits

* Separate PCAS for control for D9 and Q9

* CAS-before-RAS refre

AK594096AS-ACCUTEK.pdf

This datasheet PDF includes multiple part numbers: AK594096AG, AK594096AS. Please refer to the document for exact specifications by model.

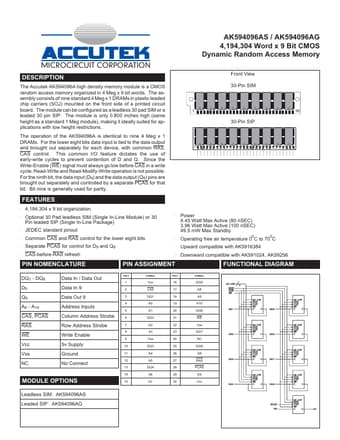

AK594096AG Datasheet Preview Page 2

Datasheet Details

Part number:

AK594096AG, AK594096AS

Manufacturer:

ACCUTEK

File Size:

154.89 KB

Description:

4194304 word x 9 bit cmos dynamic random access memory.

Note:

This datasheet PDF includes multiple part numbers: AK594096AG, AK594096AS.
Please refer to the document for exact specifications by model.
