AK594096BS 4194304 Word by 9 Bit CMOS Dynamic Random Access Memory

The Accutek AK594096 high density memory module is a CMOS random access memory organized in 4 Meg x 9 bit words. The assembly consists of two 4 Meg x 4 and one 4 Meg x 1 DRAMs, mounted on the front side of a printed circuit board in 30 pad SIM (leadless) or 30 pin SIP (leaded) configuration with JED.

AK594096BS Features

* 4,194,304 x 9 bit organization

* Low Profile 30 pad (SIM) Single In-Line Memory

* Low Profile 30 pin (SIP) Single In-Line package

* JEDEC standard pinout

* Common CAS, RAS and WE for the lower eight bits

* CAS-before-RAS refresh PIN NOMENCLATURE A0 - A10 RAS0 CAS WE OE DQ1

AK594096BS-ACCUTEK.pdf

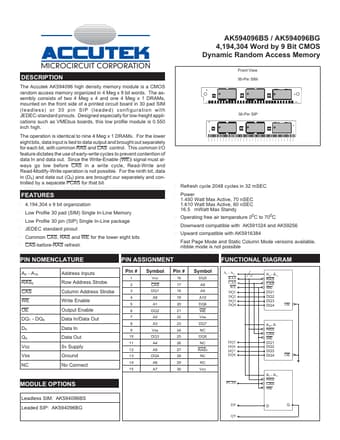

AK594096BS Datasheet Preview — Preview of AK594096BS PDF

Datasheet Details

Part number:

AK594096BS

Manufacturer:

ACCUTEK

File Size:

144.77 KB

Description:

4194304 word by 9 bit cmos dynamic random access memory.
