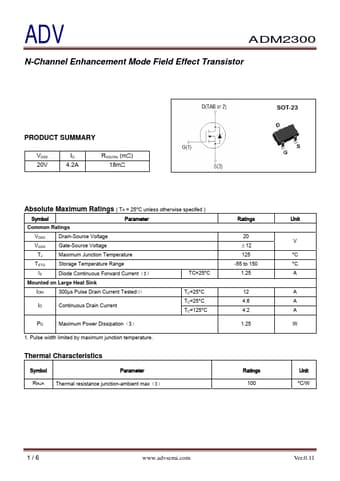

ADM2300
ADV
453.21 KB
N-channel mosfet.
ADV
ADM2300
N-Channel Enhancement Mode Field Effect Transistor
PRODUCT SUMMARY
VDSS 20V
ID 4.2A
RDS(ON) (mΩ) 18mΩ
SOT-23
Absolute Maximum Rati.
