ADM20N06D N-Channel MOSFET

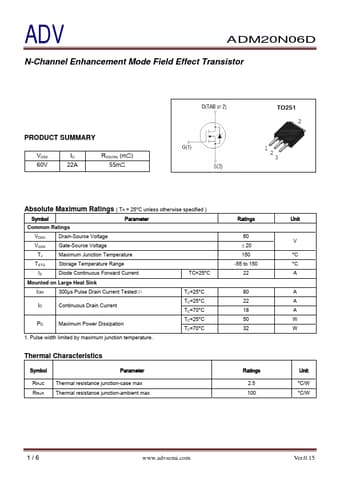

ADV ADM20N06D N-Channel Enhancement Mode Field Effect Transistor PRODUCT SUMMARY VDSS 60V ID 22A RDS(ON) (mΩ) 55mΩ TO251 2 1 23 Absolute Maximum Ratings ( TA = 25°C unless otherwise specified ) Symbol Parameter Common Ratings VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Forward Current TC=25°C Mounted on Large Heat Sink IDM 300μs Pulse Drain Current Tested⑴ ID Continuous Drain Curr.
